Overview

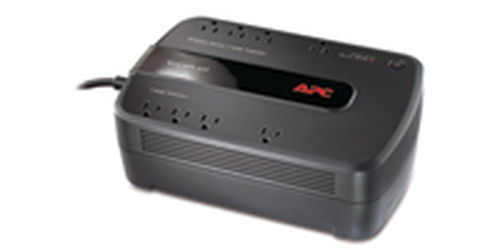

Protect computers, wireless routers, IOT devices, and security systems with the APC Back-UPS 650VA. APC Back-UPS provide backup battery power during power outages and continuously safeguard devices from fluctuating power conditions and surges. With 8 outlets, this desktop UPS (uninterruptible power supply) provides seamless battery power to connected electronics. The 390w capacity is ideal for workstations, keeping you connected and productive during power fluctuations. This battery backup is designed to power wireless home networking devices (router and modem) for hours during utility outages so you can stay connected and productive. This computer backup offers lifetime guaranteed surge protection with a $75,000 equipment protection policy. The side of this 650VA UPS includes 2 keyhole sockets to easily mount the battery backup on a wall in hard to reach installations. The outlets are arranged with spaces to accommodate both average sized power plugs and transformer block power plugs. Use the included PowerChute software to configure settings and set up automatic graceful shutdown of a connected PC in the event of an extended power outage. Audible alarms provide notification of changing utility power and UPS conditions. Audible alarms can be muted. Package Contains Battery backup & surge protector, user manual
Specifications
Features
| Output power capacity | 0.65 kVA |
|---|
| Output power | 390 W |
|---|
| Input operation voltage (min) | 90 V |
|---|
| Input operation voltage (max) | 140 V |
|---|
| Input frequency | 50/60 Hz |
|---|
| Output operation voltage (min) | 120 V |
|---|
| Output operation voltage (max) | 120 V |
|---|
| Maximum current | 12 A |
|---|
| Surge energy rating | 340 J |
|---|
| Noise level | 45 dB |
|---|
| Audible alarm(s) | Yes |
|---|
| Audible alarm modes | Battery replacement |
|---|
Ports & interfaces
| AC outlet types | NEMA 5–15R |
|---|
| AC outlets quantity | 8 AC outlet(s) |
|---|
| USB 2.0 ports quantity | 1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Battery recharge time | 24 h |
|---|
| Hot-swap battery | Yes |
|---|
| Automatic battery test | Yes |
|---|
| Cold start | Yes |
|---|
Design
| Form factor | Compact |
|---|
| Cable length | 1.52 m |
|---|
| Product colour | Black |
|---|
| LED indicators | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | UL 1449, CSA C22.2 No. 107.1,FCC Part 15 Class B,FCC Part 68,NOM,TUV-C,UL 1778 |
|---|
Weight & dimensions
| Width | 180 mm |
|---|
| Depth | 284 mm |
|---|
| Height | 86 mm |
|---|
| Weight | 6.2 kg |
|---|
Packaging data
| Package weight | 7 kg |
|---|
Other features
| Interface | USB |
|---|
| Output connections | 8 x NEMA 5-15R |
|---|
| Input connection type | NEMA 5-15P |
|---|
| Networking features | 10/100Base T |
|---|
| Package dimensions (WxDxH) | 226 x 386 x 127 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
