Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

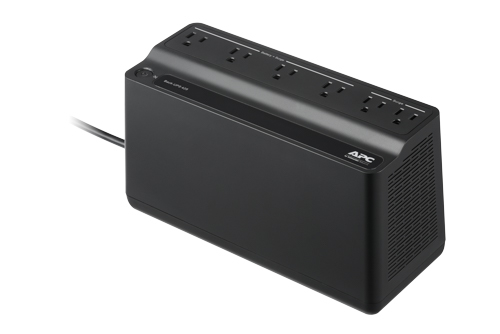

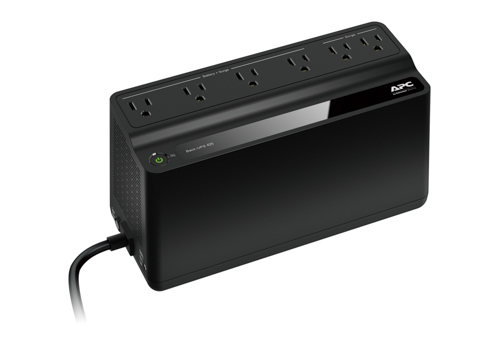

APC BE425M-LM uninterruptible power supply (UPS) Standby (Offline) 0.425 kVA 255 W 6 AC outlet(s)
Part number BE425M-LM
APC BACK-UPS ES 6 OUTLET 425VA, 120V, LAM
- Standby (Offline)
- 0.425 kVA 255 W
- Waveform: Square
- 6 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Compact Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BE425M-LM
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Standby (Offline) |
|---|---|
| Output power capacity | 0.425 kVA |
| Output power | 255 W |
| Waveform | Square |
| Input operation voltage (min) | 88 V |
| Input operation voltage (max) | 139 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (max) | 120 V |
| Output frequency regulation | 50 - 60 Hz |
| Maximum current | 5 A |
| Surge energy rating | 180 J |
| Number of output phases | 1 |
| Noise level | 40 dB |
| Audible alarm(s) | Yes |
| Audible alarm modes | Low battery alarm |
| AC outlet types | NEMA 5–15R |
|---|---|
| Power plug | NEMA 5-15P |
| AC outlets quantity | 6 AC outlet(s) |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 47 VAh |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 8 h |
| Form factor | Compact |
|---|---|
| Cable length | 1.5 m |
| Product colour | Black |
| LED indicators | Status |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Compliance certificates | RoHS |
|---|
| Manual | Yes |
|---|
| Width | 253 mm |
|---|---|
| Depth | 105 mm |
| Height | 140 mm |
| Weight | 2.6 kg |
| Package width | 315 mm |
|---|---|
| Package depth | 140 mm |
| Package height | 220 mm |
| Package weight | 3 kg |
| Products per pallet | 96 pc(s) |
|---|---|
| Products per master (outer) case | 2 pc(s) |
