Products › Power & Rack Equipment

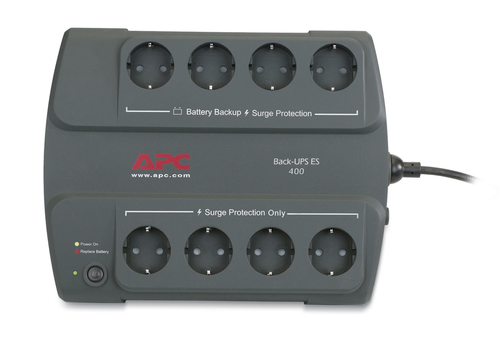

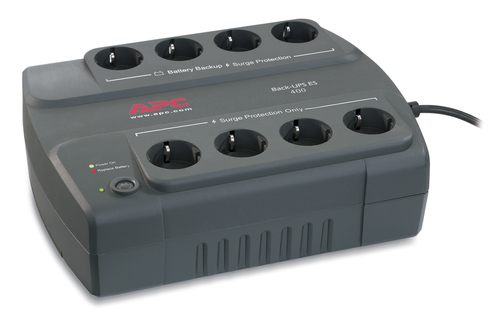

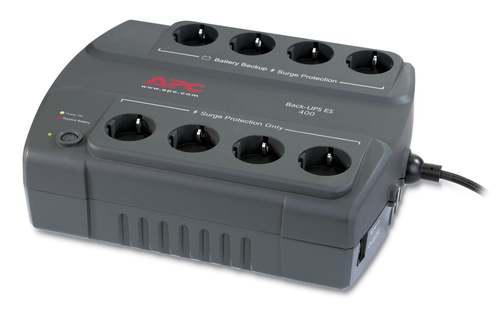

APC Back-UPS uninterruptible power supply (UPS) Standby (Offline) 0.4 kVA 240 W
Part number BE400-GR
BACK-UPS ES 400VA 230V GERMAN/DUTCH
- Standby (Offline)
- 0.4 kVA 240 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 12 V 6 Ah
- Compact Grey
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- BE400-GR
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Audible alarms
Provides notification of changing utility power and UPS power conditions
Automatic self-test Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery-protected and surge-only outlets
Reserves power capacity and run time for connected equipment that require UPS battery back-up while providing surge only protection for less critical equipment.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance
Safety-agency approved
Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR).
Battery and surge protected outlets
Back up and protect your hardware and data during power outages, surges and spikes.
Surge only outlets
Protect secondary electronics from surges and spikes without reducing battery power used to run primary electronics during an outage.
Automatic self-test
Periodic battery self-test ensures early detection of a battery that needs to be replaced.
Battery failure notification
Provides early-warning fault analysis on batteries enabling timely preventive maintenance.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Resettable circuit breaker
Easy recovery from overloads; no need to replace a fuse.
Audible alarms
Provides notification of changing utility power and UPS power conditions.
LED status display
Quickly understand unit and power status with visual indicators.
Specifications
| UPS topology | Standby (Offline) |
|---|---|
| Output power capacity | 0.4 kVA |
| Output power | 240 W |
| Waveform | Sine |
| Input operation voltage (min) | 180 V |
| Input operation voltage (max) | 266 V |
| Input frequency | 50/60 Hz |
| Output frequency regulation | 47 - 63 Hz |
| Maximum current | 10 A |
| Surge energy rating | 310 J |
| Hold time (min) | 6 ms |
| Hold time (max) | 10 ms |
| Efficiency | 98.7% |
| Noise level | 45 dB |
| Surge protection | Yes |
| Surge protection features | Digital Subscriber Line (DSL), Fax, Modem, Network, Telephone |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| AC outlet types | Type F |
|---|---|
| Number of type F outputs | 8 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 6 Ah |
| Battery capacity | 102 VAh |
| Battery voltage | 12 V |

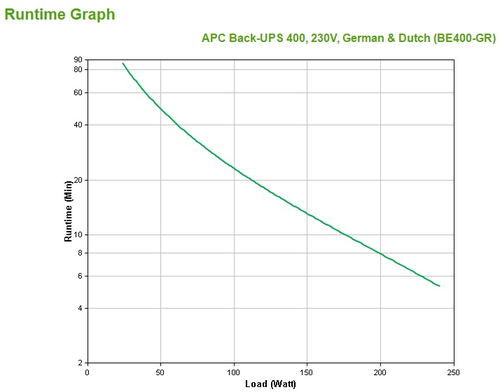

| Typical backup time at full load | 5.3 min |
| Typical backup time at half load | 18.2 min |
| Battery life (max) | 5 year(s) |
| Battery recharge time | 16 h |
| Automatic battery test | Yes |
| Form factor | Compact |
|---|---|
| Cable length | 1.83 m |
| Product colour | Grey |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 15000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|---|
| Certification | CE, GOST, NEMKO, REACH, PEP, EOLI |
| Manual | Yes |
|---|
| Sustainability certificates | ENERGY STAR |
|---|
| Width | 230 mm |
|---|---|
| Depth | 285 mm |
| Height | 86 mm |
| Weight | 5.4 kg |
| Package width | 300 mm |
|---|---|
| Package depth | 366 mm |
| Package height | 132 mm |
| Package weight | 5.6 kg |
| Products per pallet | 48 pc(s) |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Products per master (outer) case | 2 pc(s) |
| Nominal output voltage | 230 V |
|---|---|
| Output voltage | 230 V |
| Filtering | Yes |
| Packaging content | Wall-mounting template |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
