APC BY SCHNEIDER ELECTRIC

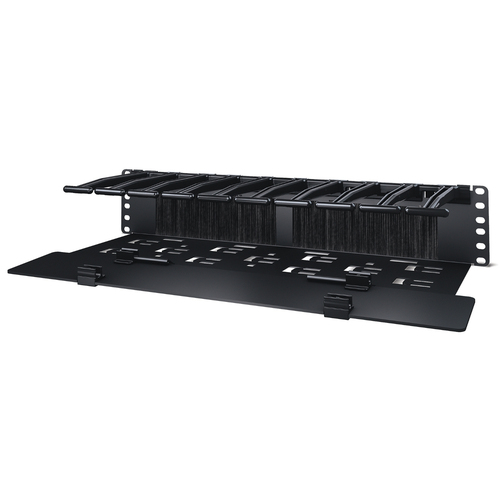

APC NetShelter Cable Management, Horizontal Cable Manager, 2U, with Cable Tie, Single Side with Cover, 482 x 89 x 165 mm

Part number AR8603A

2U HORIZONTAL CABLE MANAGER 6 FINGERS TOP BOTTOM TIE DOWN

Supports high-density cable management with a 2U, 6-inch deep design
Includes cable tie-down slots and access slots for efficient cable routing
Made from robust materials to withstand heavy use
Comes with mounting hardware and an installation guide

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AR8603A
Condition: New
Category: Power & Rack Equipment › Rack Equipment
1GPA category: Hardware

Overview

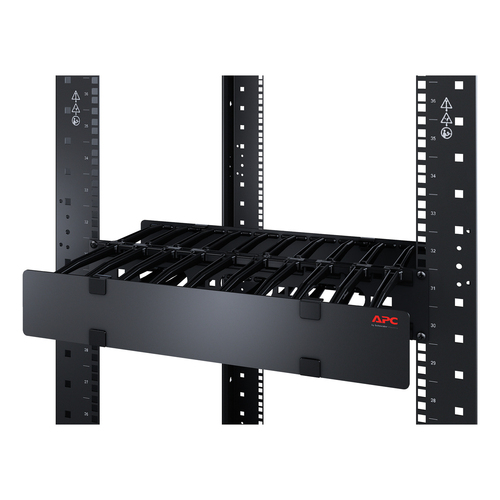

"High density 2U, 6-in (150-mm) deep, horizontal cable manager with cover" "Features cable access slots with pre-installed brush strips in the backplate for front to back cable pass-through and a bottom plate with features for additional cable tie-off and routing"

Specifications

Features
Type	Cable management panel
Product colour	Black
Built-in fan	No
Rack capacity	2U
Hot-swap	No
On/off switch	No
Castor wheels	No
Locking	No
Certification	TAA compliance
Country of origin	United States

Weight & dimensions
Width	482.6 mm
Depth	165.1 mm
Depth (max)	16.6 cm
Height	88.9 mm
Weight	1.2 kg

Packaging data
Package width	521 mm
Package depth	200 mm
Package height	153 mm
Package weight	1.5 kg

Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance	Yes

Technical details
Total carbon footprint (kg of CO2e)	5.264209768966344
Compliance certificates	RoHS, REACH, WEEE
Sustainable packaging	No
Mounting	front; rear
Preferred mounting position	no preference
Take-back system	No
Packaging without single use plastic	No

Logistics data
Customs product code (TARIC)	8302420090
Harmonized System (HS) code	85389099

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
