Overview

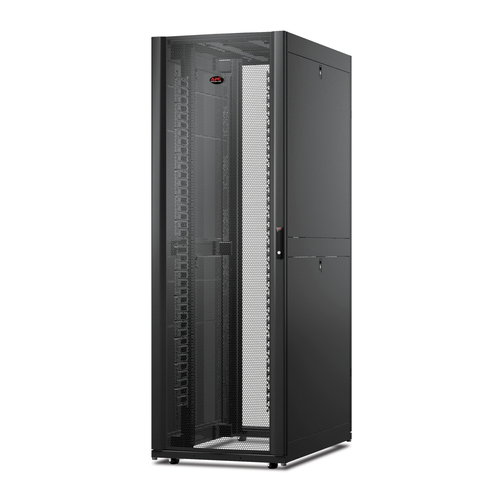

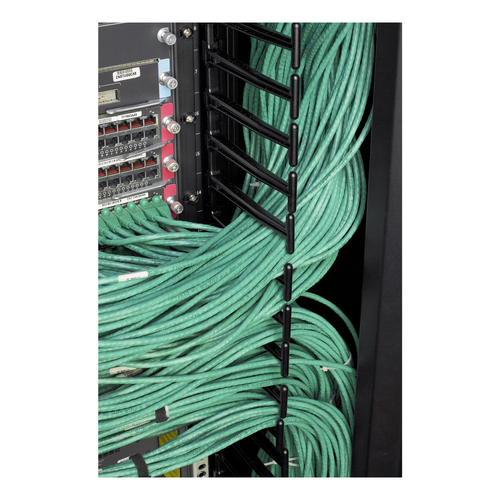

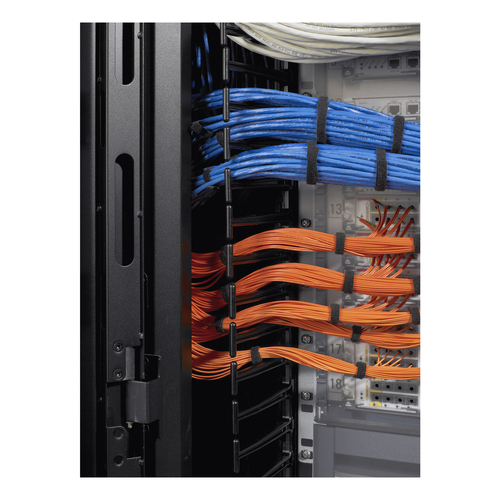

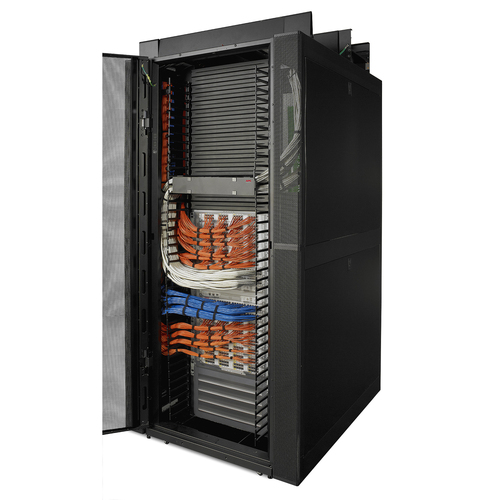

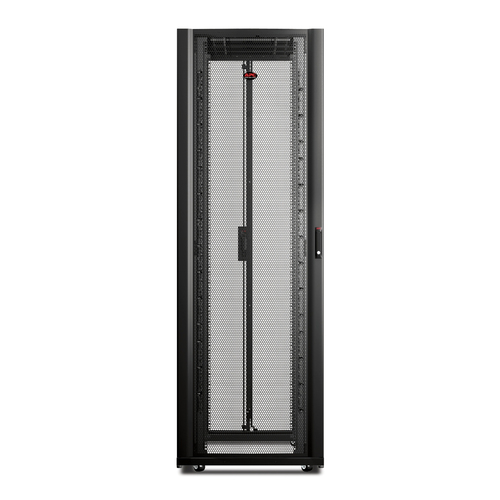

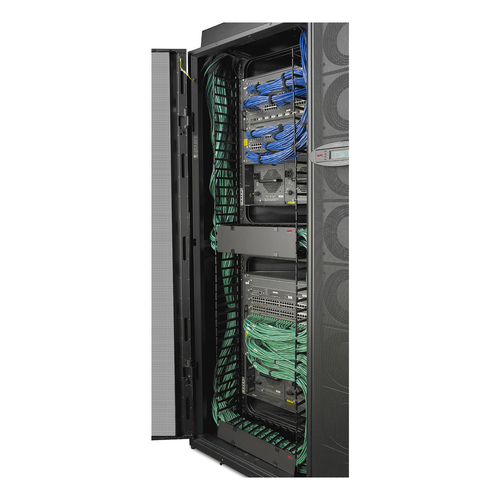

APC NetShelter SX Networking Rack Enclosure is industry standard server rack ready for medium to high density environments. Rack design offers 48RU height with 959 mm max equipment mounting depth, 1701 kg (3750 lb) static load, and 1021 kg (2250 kg) dynamic load. Network rack design helps enable faster deployment of network switches and an optimized rack mounting space designed specifically for cable and airflow management of large core networking switches and Storage Area Network (SAN) directors. Deeper rack design provides enough rack mounting space for even the deepest devices and still plenty of room for vertically mounting Rack PDUs and cable management.
Specifications
Features
| Rack capacity | 48U |
|---|
| Type | Freestanding rack |
|---|
| Maximum weight capacity | 1704 kg |
|---|
| Product colour | Black |
|---|
| Certification | RoHS,China RoHS,REACH |
|---|
Weight & dimensions
| Size (imperial) | 48.3 cm (19") |
|---|
| Width | 750 mm |
|---|
| Depth | 1200 mm |
|---|
| Height | 2258 mm |
|---|
| Weight | 185.4 kg |
|---|
| Mounting depth (min) | 27.9 cm |
|---|
| Mounting depth (max) | 95.9 cm |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
Technical details
| Total carbon footprint (kg of CO2e) | 730.6021264689424 |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Sustainable packaging | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 9403208000 |
|---|
| Harmonized System (HS) code | 85381000 |
|---|
Other features
| Dimensions (WxDxH) | 750 x 1200 x 2258 mm |
|---|
| Package dimensions (WxDxH) | 851 x 1321 x 2385 mm |
|---|
| Dynamic load | 1022.73 kg |
|---|
| Static load | 1363.64 kg |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
