APC BY SCHNEIDER ELECTRIC

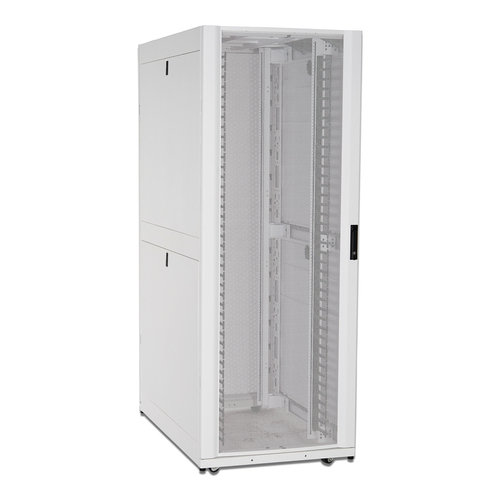

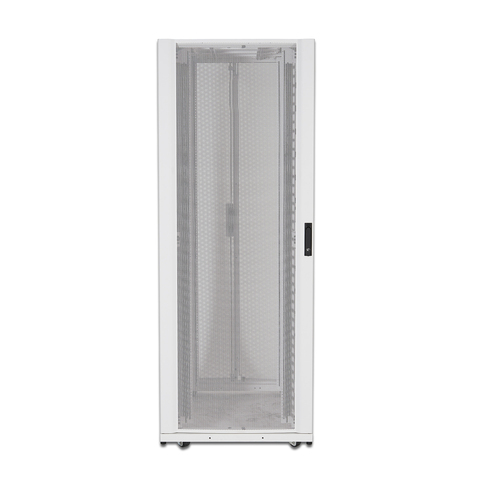

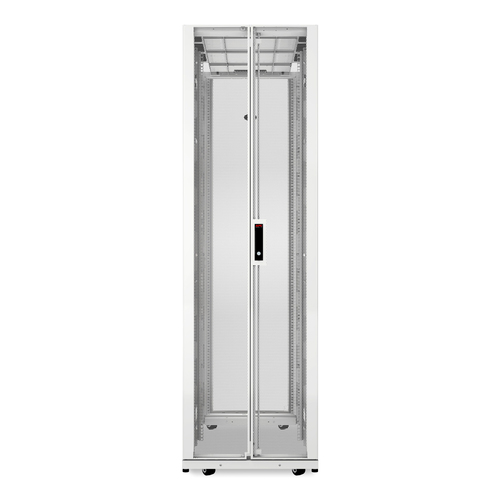

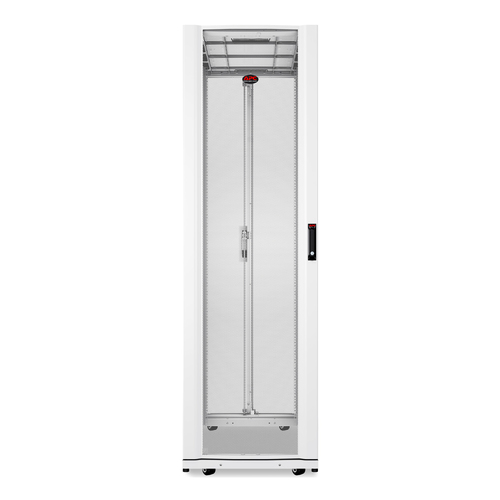

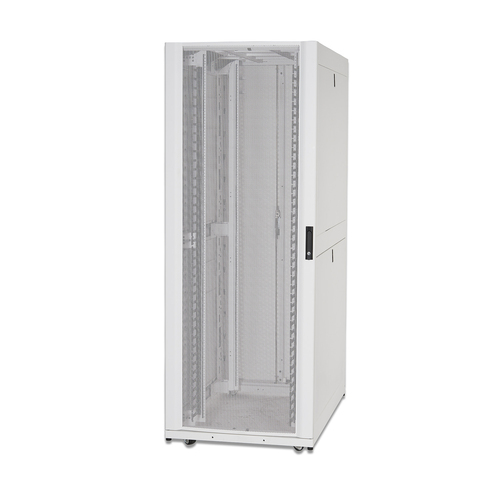

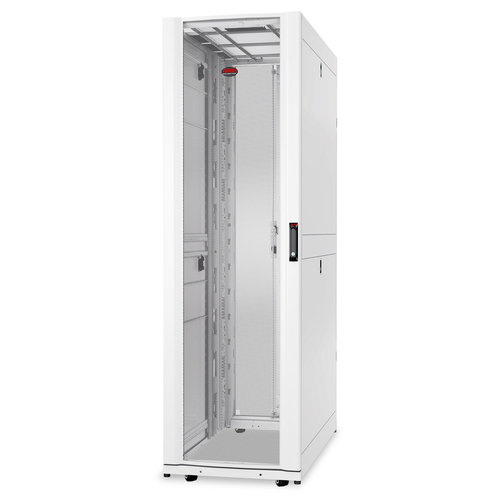

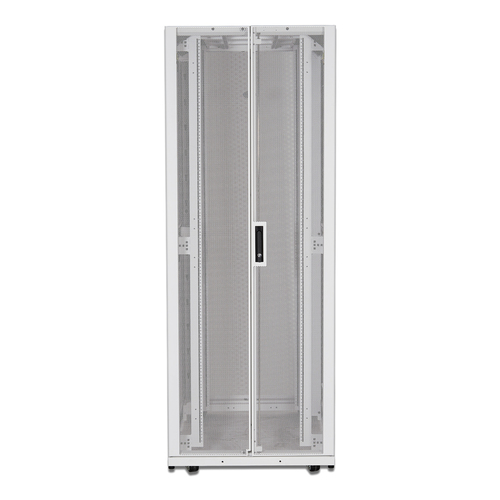

APC NetShelter SX, Networking Rack Enclosure, 42U, White, 1991H x 750W x 1200D mm
Part number AR3340W
NETSHELTER SX 42U 750MM WIDE X 1200MM DEEP NETWORKING ENCLOSURE WITH SIDES WHITE
- Ideal for medium and high density networking or computing
- Designed for faster IT installation, adds or changes
- Promotes proper airflow to improve cooling efficiency
- Full height, 0U accessory channels (x2) for more available Uspace
- Compatible with a wide variety of accessories for organization, airflow, and ease of use
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3340W
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
NetShelter SX Networking Enclosure expands Schneider Electric's superior IT enclosure line with improved support for high density networking applications Integrated high density cable managers and improved cable access roof provide support for large cable bundles When combined with the Side Airflow Duct Kit, the Networking Enclosure ensures complete isolation of cold intake and hot exhaust air for large switches and SAN directors
Specifications
| Rack capacity | 42U |
|---|---|
| Maximum weight capacity | 1363.64 kg |
| Product colour | White |
| Certification | REACH, RoHS |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 750 mm |
| Depth | 1200 mm |
| Height | 1991 mm |
| Weight | 152.3 kg |
| Width (imperial) | 75 cm (29.5") |
| Depth (imperial) | 120 cm (47.2") |
| Height (imperial) | 199.1 cm (78.4") |
| Package width | 851 mm |
|---|---|
| Package depth | 1321 mm |
| Package height | 2118 mm |
| Package weight | 183.2 kg |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 642.8652969861699 |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | Thailand |
|---|---|
| Customs product code (TARIC) | 9403208000 |
| Harmonized System (HS) code | 85381000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
