Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

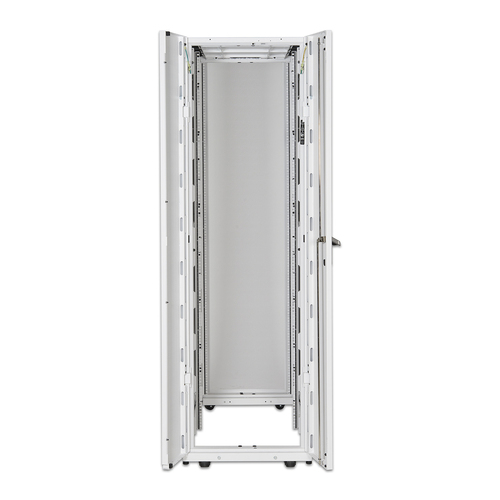

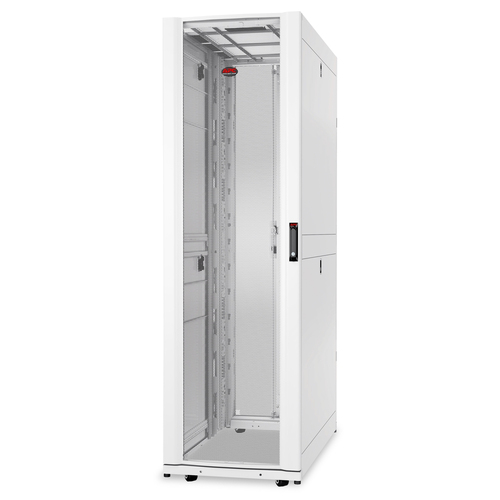

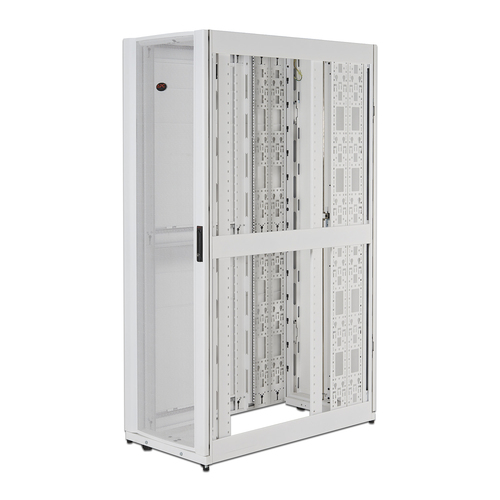

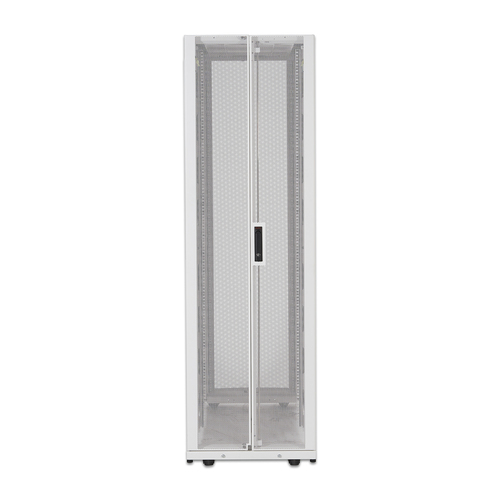

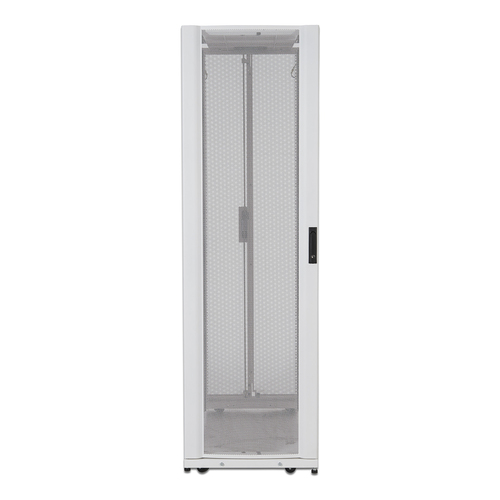

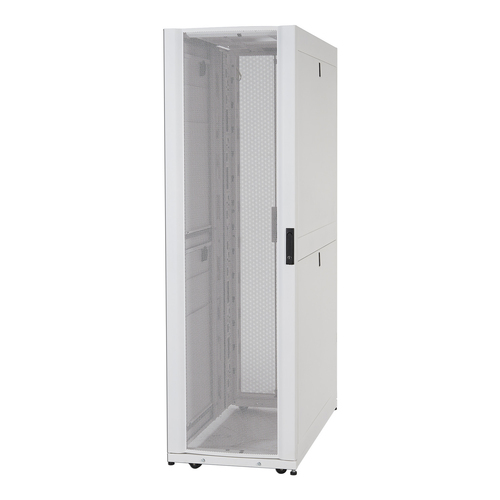

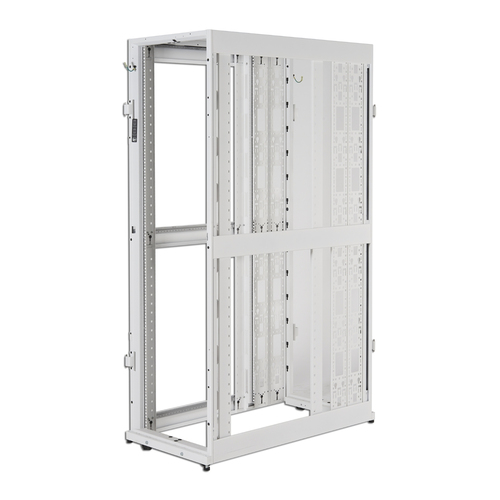

APC NetShelter SX, Server Rack Enclosure, 45U, White, 2124H x 600W x 1200D mm
Part number AR3305W
NETSHELTER SX 45U 600MM WIDE X 1200MM
- designed for medium to high-density environments
- It is a 45U server rack enclosure

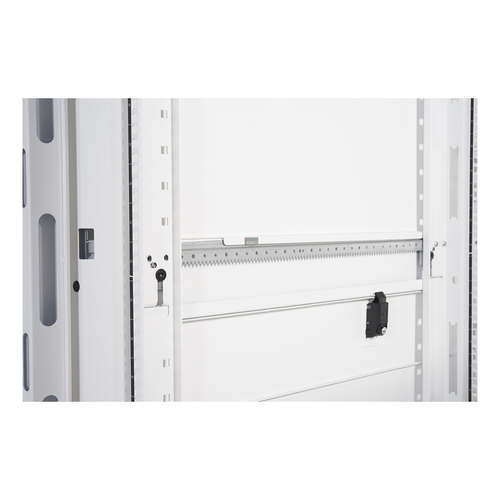

- features 14-gauge EIA mounting rails, 16-gauge front door, 16-gauge posts, and 18-gauge rear door and side panels.
- Includes baying hardware, keyed-alike doors and side panels, leveling feet, pre-installed casters, and side panels.
- providing ample space for cable management and airflow.
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3305W
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
It is a 45U server rack enclosure. It features 14-gauge EIA mounting rails, 16-gauge front door, 16-gauge posts, and 18-gauge rear door and side panels. It includes baying hardware, keyed-alike doors and side panels, leveling feet, pre-installed casters, and side panels. It is designed for medium to high-density environments, providing ample space for cable management and airflow.
Specifications
| Rack capacity | 45U |
|---|---|
| Maximum weight capacity | 1363.64 kg |
| Mounting type | Floor |
| Material | Steel |
| Product colour | White |
| Removable side panels | Yes |
| Locking | Yes |
| Locking type | Key |
| International Protection (IP) code | IP20 |
| Total carbon footprint (kg of CO2e) | 555.9005516028459 |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Width | 600 mm |
|---|---|
| Depth | 1200 mm |
| Height | 2124 mm |
| Weight | 141 kg |
| Side panels included | Yes |
|---|---|
| Manual | Yes |
| Package width | 1334 mm |
|---|---|
| Package depth | 746 mm |
| Package height | 2240 mm |
| Package weight | 158.4 kg |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Customs product code (TARIC) | 9403208000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
