APC NetShelter SX Server Rack Gen 2, 48U, 2258H x 750W x 1070D mm, with Sides, Black
Part number AR3157B2
APC NETSHELTER SX GEN 2, 48U SERVER RACK ENCLOSURE 750MM X 1070MM W SIDES BLACK
- Ideal for AI, high density server and networking applications
- 2nd Gen model with higher load capacity and better airflow
- Lower CO2 emissions with 3.3% decarbonization rate
- Ample space, organization, security and convenience features
- Extensive list of compatible products and accessories
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3157B2
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Introducing the redesigned APC NetShelter SX rack enclosure - trusted, versatile, and built for demanding IT environments. With larger load capacities and more space for equipment, it enables higher-density computing. Choose from standard, wide, extra wide, and large-depth options. The modern look is perfect for colocation and customer-facing businesses. Simplify workflows with easy access to cabling and equipment, and optimize airflow and cable management with our wide range of APC accessories. The 270° (180° bayed) opening doors keep aisles clear, while 80% door perforation improves airflow for high-powered servers. Built sustainably with all-steel construction, it lasts for years and can be used for various applications. It also boasts a 3.3% decarbonization rate and ships in sturdy, recyclable packaging.
Specifications
| Rack capacity | 48U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 1814 kg |
| Maximum weight capacity (rolling) | 1020 kg |
| Product colour | Black |
| Side panels included | Yes |
| Key lock | Yes |
| Side panel key lock | Yes |
| Adjustable feet | Yes |
| Door opening angle | 270° |
| Size (imperial) | 48.3 cm (19") |
|---|---|

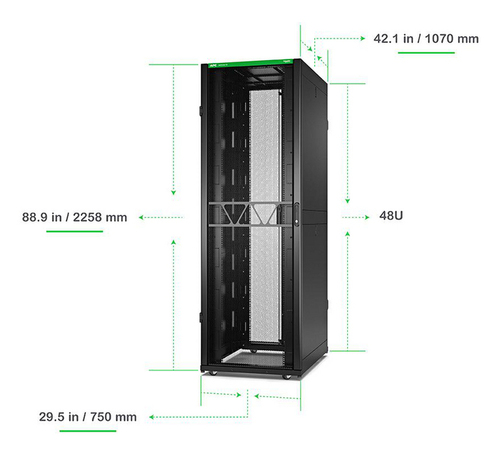

| Width | 750 mm |
| Depth | 1070 mm |
| Height | 2258 mm |
| Weight | 160.8 kg |
| Mounting depth (min) | 28.6 cm |
| Mounting depth (max) | 91.5 cm |
| Package width | 853 mm |
|---|---|
| Package depth | 1158 mm |
| Package height | 2395 mm |
| Package weight | 184.1 kg |
| Doesn't contain | SVHC |
|---|---|
| Warranty period | 5 year(s) |
| Compliance certificates | REACH, RoHS |
| Country of origin | China |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
