Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

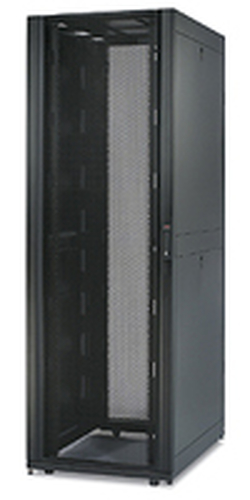

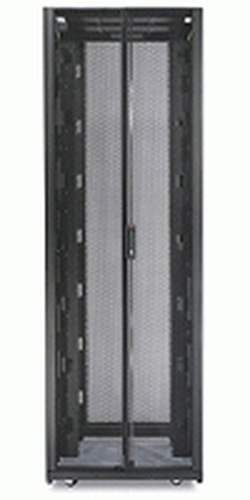

APC NetShelter SX 48U 750mm Wide x 1070mm Deep Enclosure Freestanding rack Black
Part number AR3157
NETSHELTER SX 48U 750MMX1070MMD ENCL SIDES BLK CUST PAYS FRT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3157
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Tall and wide enclosure with 48U spaces for additional equipment and increased cable management options for high density server and networking applications.
Specifications
| Rack capacity | 48U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 1704 kg |
| Maximum weight capacity (rolling) | 1022 kg |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 750 mm |
| Depth | 1070 mm |
| Height | 2258 mm |
| Weight | 169.1 kg |
| Mounting depth (min) | 26.2 cm |
| Mounting depth (max) | 91.5 cm |
| Package weight | 184.1 kg |
|---|
| Total carbon footprint (kg of CO2e) | 558.58 |
|---|
| Harmonized System (HS) code | 85381000 |
|---|
| Dimensions (WxDxH) | 750 x 1070 x 2258 mm |
|---|---|
| Package dimensions (WxDxH) | 895 x 1219 x 2400 mm |
| Dynamic load | 1022 |
| Static load | 1704 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
