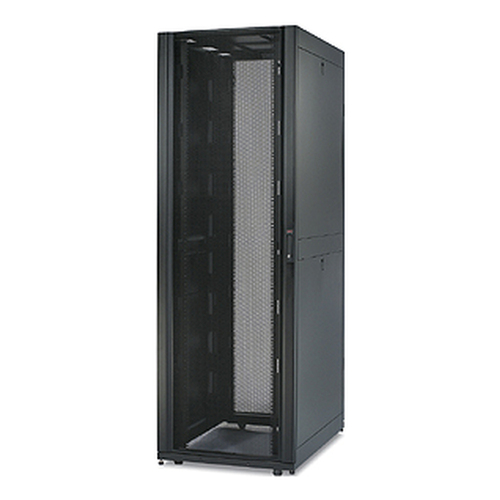

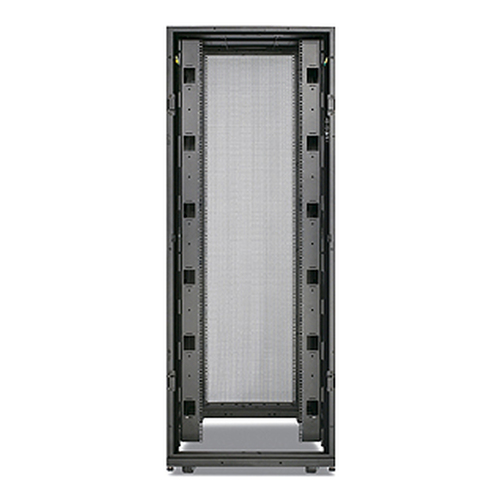

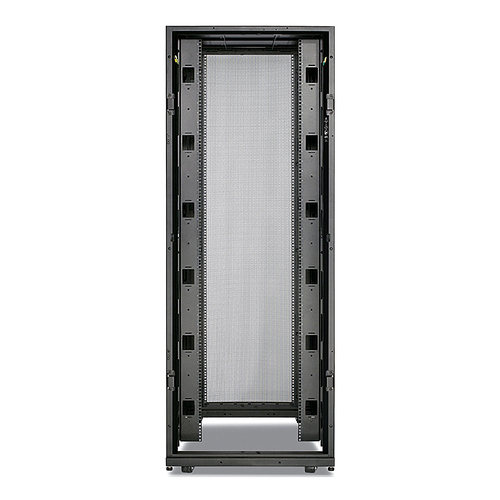

APC NetShelter SX, Server Rack Enclosure, 42U, without Rear Doors, Black, 1991H x 750W x 1070D mm
Part number AR3150HACS
NETSHELTERDEEP ENCLOSURE NO REAR DOORS
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3150HACS
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Wide enclosure with increased cable management options for high density server and networking applications. 42U height to easily roll through doorways.
Includes: Baying hardware, Documentation CD, Key(s), Keyed-alike doors and side panels, Leveling feet, Mounting Hardware, Pre-installed casters, Side Panels
Specifications
| Rack capacity | 42U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 1704 kg |
| Product colour | Black |
| Cooling - rack front door | 16 |
| Cooling - rack rear doors | 16 |
| Certification | UL 60950-1, RoHS |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 750 mm |
| Depth | 1070 mm |
| Height | 1991 mm |
| Weight | 156 kg |
| Package weight | 168.2 kg |
|---|
| Dimensions (WxDxH) | 750 x 1070 x 1991 mm |
|---|---|
| Package dimensions (WxDxH) | 895 x 1219 x 2216 mm |
| Dynamic load | 1022.73kg |
| Static load | 1363.64kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
