Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

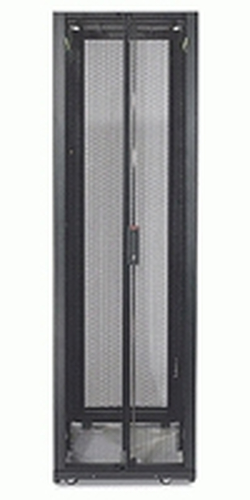

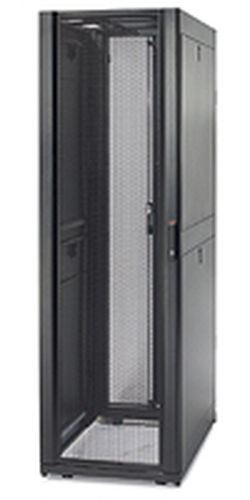

APC NetShelter SX, Server Rack Enclosure, 48U, Black, 2258H x 600W x 1070D mm
Part number AR3107
NETSHELTER SX 48U 600MMX1070MMD ENCL SIDES BLK CUST PAYS FRT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3107
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
An industry standard rack AR3107 with the most features for speed of deployment and installation. Ready for high density environments. 48U height allows for an additional 6U of rack mounting space maximizing u-space per rack footprint.
Specifications
| Rack capacity | 48U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 1704 kg |
| Product colour | Black |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 2258 mm |
| Weight | 138.2 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 91.5 cm |
| Package weight | 157.7 kg |
|---|
| Total carbon footprint (kg of CO2e) | 478.45 |
|---|
| Harmonized System (HS) code | 85381000 |
|---|
| Dimensions (WxDxH) | 600 x 1070 x 2258 mm |
|---|---|
| Package dimensions (WxDxH) | 899 x 1219 x 2385 mm |
| Dynamic load | 1022 |
| Static load | 1704 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
