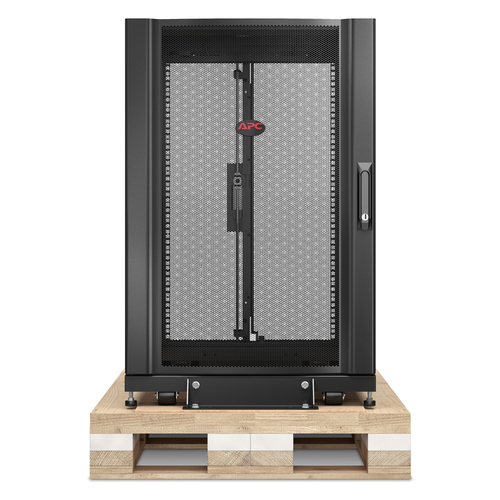

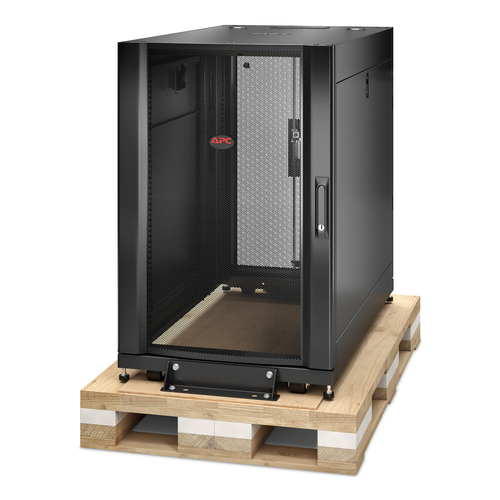

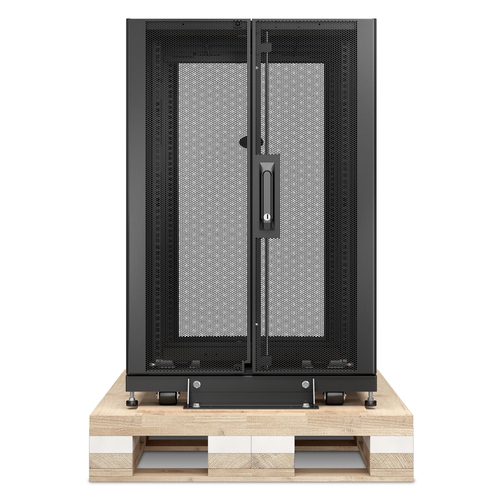

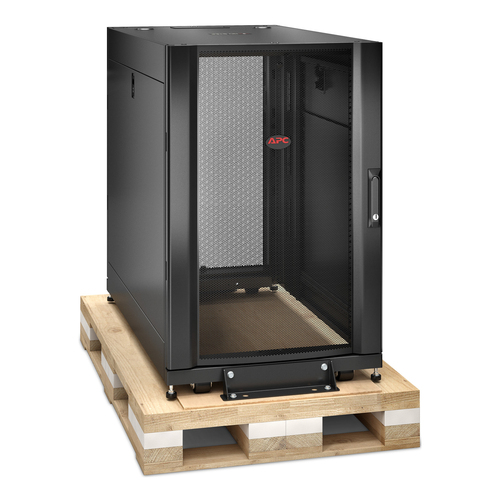

APC NetShelter SX, Server Rack Enclosure, 18U, Shock Packaging, Black, 925H x 600W x 1070D mm
Part number AR3106SP
NETSHELTER SX 18U 600MM X 1070MM
- Compact design fits tight spaces, ideal for small offices and remote deployments
- Vendor-neutral EIA-310 19 rack mounting compatibility with adjustable rails
- Ready for low to medium density edge computing
- Two zero-U accessory channels to maximize equipment space
- Shock packaging allows IT gear to be pre-integrated & shipped
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3106SP
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 18RU height with 921 mm max equipment mounting depth, 408 kg (900 lb) static load, and 408 kg (900 lb) dynamic load and two 0U accessory channels. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.
Specifications
| Rack capacity | 18U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 409 kg |
| Product colour | Black |
| Frame type | Closed |
| Back door construction | Perforated |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Cable management | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | REACH UL 2416, UL 60950-1 |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 925 mm |
| Weight | 72.1 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 92.1 cm |
| Package width | 750 mm |
|---|---|
| Package depth | 1240 mm |
| Package height | 1220 mm |
| Package weight | 127 kg |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 445.70309377248384 |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | China |
|---|---|
| Customs product code (TARIC) | 9403208000 |
| Harmonized System (HS) code | 85381000 |
