Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

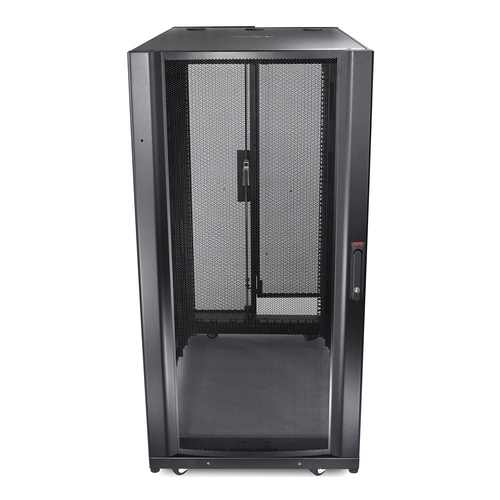

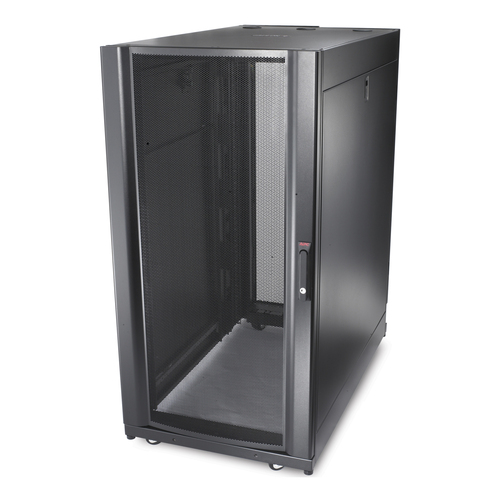

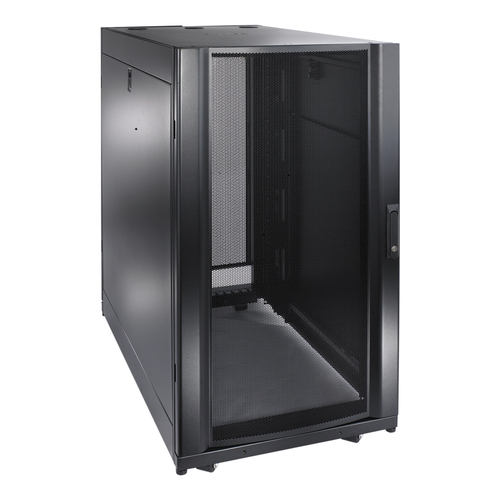

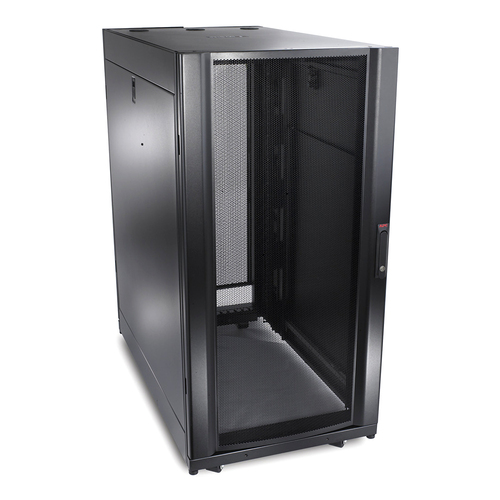

APC NetShelter SX, Server Rack Enclosure, 24U, Black, 1198.5H x 600W x 1070D mm
Part number AR3104
NETSHELTER SX 24U 600MM X 1070MM DEEP ENCLOSURE - AN INDUSTRY-STANDARD RACK WITH
- 24U height makes it suitable for smaller spaces while still providing ample rack space
- Supports a maximum static load of 3000 lbs and a dynamic load of 2250 lbs

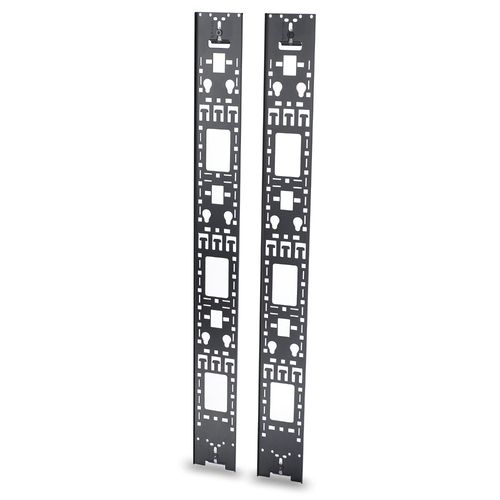

- Features adjustable mounting rails for various equipment depths

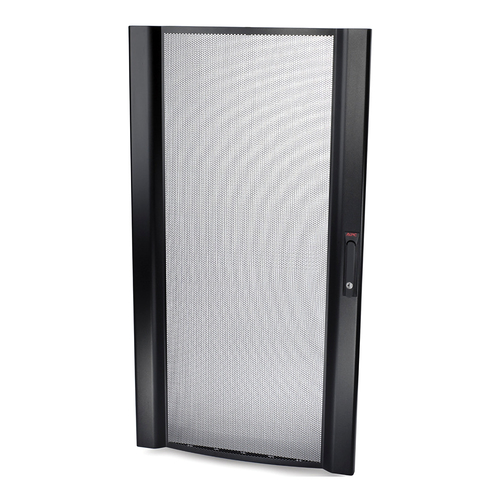

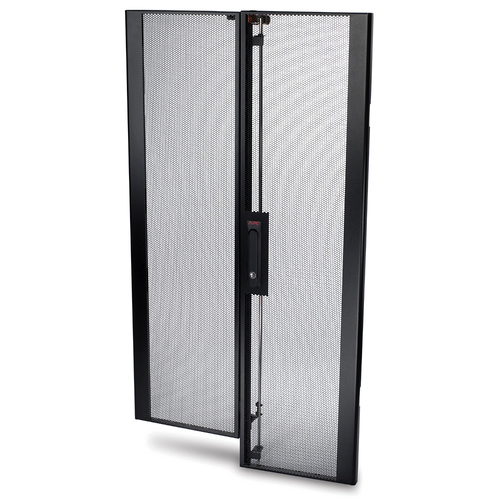

- Includes lockable front and rear doors, as well as side panels
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3104
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
An industry standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing.
Specifications
| Rack capacity | 24U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 1360.78 kg |
| Maximum weight capacity (rolling) | 1020.58 kg |
| Product colour | Black |
| Side panel style | Blind |
| Key lock | Yes |
| Adjustable feet | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | EIA-310-D |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 1198.5 mm |
| Weight | 89.1 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 91.5 cm |
| Package width | 746 mm |
|---|---|
| Package depth | 1156 mm |
| Package height | 1322 mm |
| Package weight | 106.8 kg |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 374.8819250139899 |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | China |
|---|---|
| Customs product code (TARIC) | 9403208000 |
| Harmonized System (HS) code | 85381000 |
| Package dimensions (WxDxH) | 899 x 1219 x 1350 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
