Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

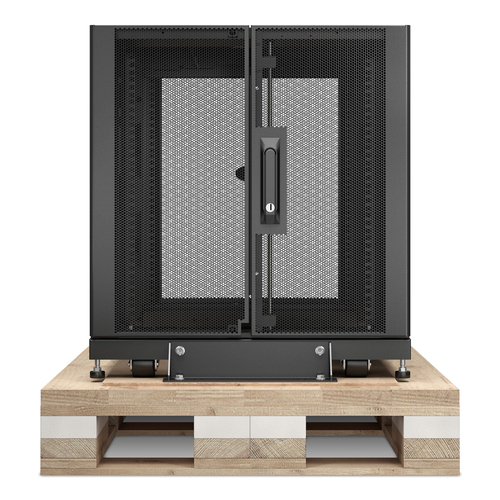

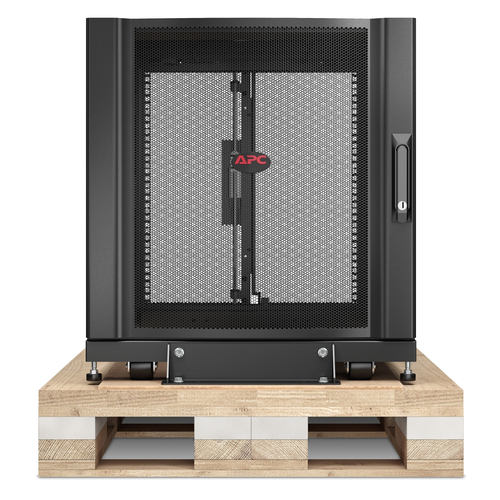

APC NetShelter SX, Server Rack Enclosure, 12U, Shock Packaging, Black, 658H x 600W x 1070D mm
Part number AR3103SP
NETSHELTER SX 12U 600MM X 1070MM
- Compact design fits tight spaces, ideal for small offices and remote deployments
- Vendor-neutral EIA-310 19 rack mounting compatibility with adjustable rails
- Ready for low to medium density edge computing
- Two zero-U accessory channels to maximize equipment space
- Shock packaging allows IT gear to be pre-integrated & shipped
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3103SP
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
APC NetShelter SX server rack enclosure with the most standard features for speed of deployment and installation. Rack design offers 12RU height with 921 mm max equipment mounting depth, 272 kg (600 lb) static load, and 272 kg (600 lb) dynamic load and two 0U accessory channels. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices.
Specifications
| Rack capacity | 12U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 272 kg |
| Product colour | Black |
| Frame type | Closed |
| Back door construction | Perforated |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Cable management | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | REACH UL 2416, UL 60950-1 |
| Size (imperial) | 48.3 cm (19") |
|---|---|
| Width | 600 mm |
| Depth | 1070 mm |
| Height | 658 mm |
| Weight | 59 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 92.1 cm |
| Package width | 750 mm |
|---|---|
| Package depth | 1240 mm |
| Package height | 960 mm |
| Package weight | 115 kg |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Total carbon footprint (kg of CO2e) | 403.5894156207531 |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | China |
|---|---|
| Customs product code (TARIC) | 9403208000 |
| Harmonized System (HS) code | 85381000 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
