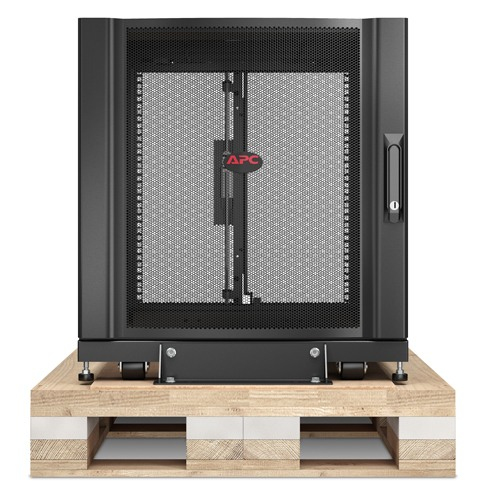

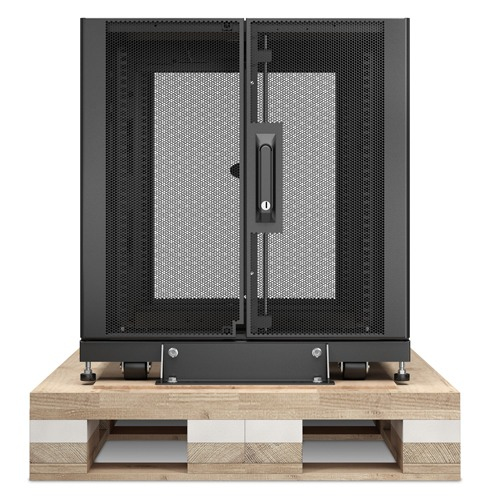

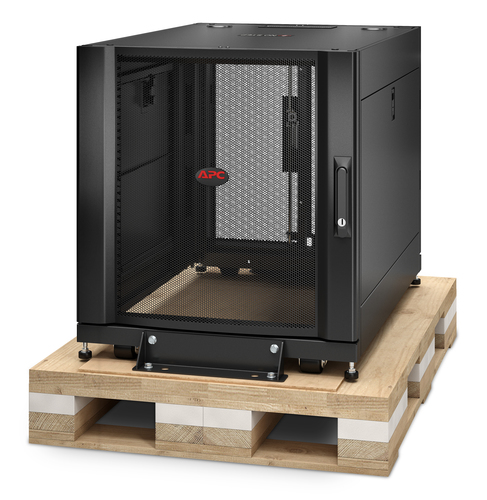

APC NetShelter SX, Server Rack Enclosure, 12U, Shock Packaging, Black, 658H x 600W x 900D mm
Part number AR3003SP
NETSHELTER SX 12U 600MM X 900MM
- Feature-rich rack enclosure optimized for easy installation, managing cables, integrating power distribution, and maximizing airflow
- Includes: Casters, Comms cable, Doors, Key(s), Leveling feet, Pallet ramps, Reusable packaging, Roof, Side panels
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR3003SP
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
An industry standard rack with the most standard features for speed of deployment and installation. Ready for low to medium density edge computing. Shorter height allows for deployment underneath cabinets, desks, in remote office branch office spaces for a secure and discrete solution for IT devices. Shock pallet and shock packaging simplifies IT “rack and stack” for equipment integrators.
Specifications
| Rack capacity | 12U |
|---|---|
| Type | Freestanding rack |
| Maximum weight capacity | 272 kg |
| Product colour | Black |
| Frame type | Closed |
| Back door construction | Perforated |
| Removable back door | Yes |
| Removable front door | Yes |
| Removable side panels | Yes |
| Side panels included | Yes |
| Key lock | Yes |
| Side panel key lock | Yes |
| Adjustable mounting rails | Yes |
| Adjustable feet | Yes |
| Cable management | Yes |
| Castor wheels | Yes |
| International Protection (IP) code | IP20 |
| Certification | UL 2416, UL 60950-1 REACH |
| Width | 600 mm |
|---|---|
| Depth | 900 mm |
| Height | 658 mm |
| Weight | 54 kg |
| Mounting depth (min) | 19.1 cm |
| Mounting depth (max) | 75.6 cm |
| Package width | 750 mm |
|---|---|
| Package depth | 1070 mm |
| Package height | 960 mm |
| Package weight | 108 kg |
| Total carbon footprint (kg of CO2e) | 327.7 |
|---|---|
| Compliance certificates | RoHS |
| Harmonized System (HS) code | 85381000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
