APC BY SCHNEIDER ELECTRIC

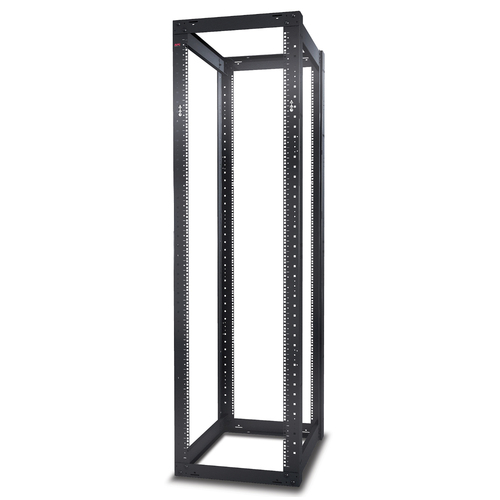

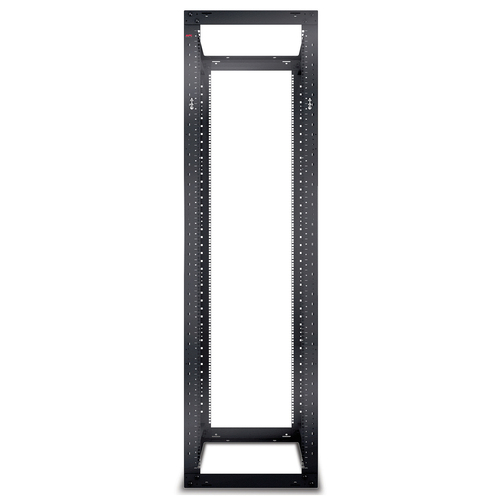

APC NetShelter AR203A - 4 Post Open Frame Rack 44U Square Holes
Part number AR203A
NETSHELTER 4 POST OPEN FRAME RACK
- Four-post open frame rack for straightforward access to equipment
- Industry standard (EIA-310) 19-in mounting
- High load capacity up to 2000 lb (907 kg)
- 44U design for more organization space
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AR203A
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
APC NetShelter Open Frame offers a high-quality four-post rack for storage of industry-standard (EIA-310). Mount 19-in rack-mount hardware, which includes servers and voice, data, networking, internetworking, and APC power-protection equipment. Rack has a static load of 907 kb (2000lb) and a max equipment depth of 747 mm. The 4 post design includes square 9.5 mm holes.
Specifications
| Type | Rack frame |
|---|---|
| Product colour | Black |
| Rack capacity | 44U |
| Certification | REACH |
| Width | 600 mm |
|---|---|
| Depth (max) | 74.7 cm |
| Height | 2130 mm |
| Weight | 40.4 kg |
| Package width | 254 mm |
|---|---|
| Package depth | 113 mm |
| Package height | 2083 mm |
| Package weight | 40.8 kg |
| Compliance certificates | RoHS |
|---|
| Harmonized System (HS) code | 85389099 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
