Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

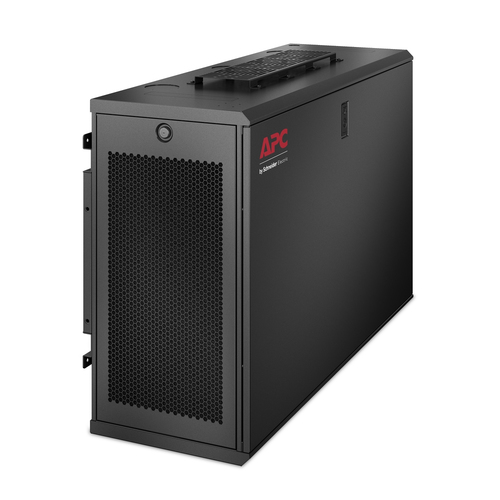

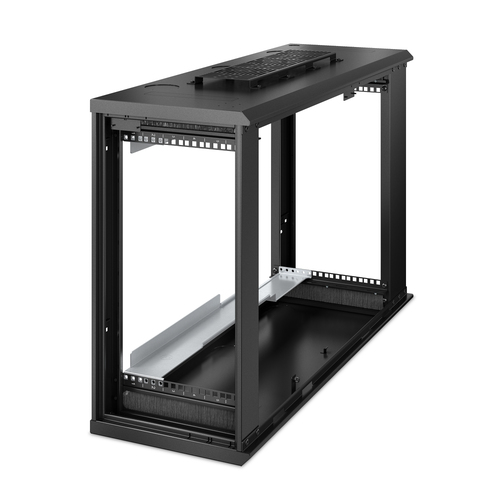

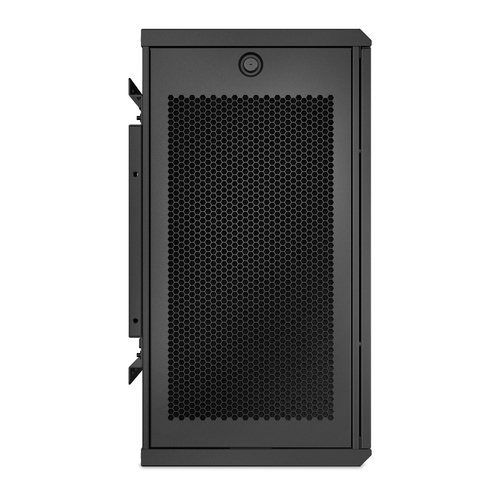

APC NetShelter 6U Low-profile Wallmount Rack Enclosure Cabinet 120V Server Depth

Part number AR106V

AR106V - APC NETSHELTER 6U LOW-PROFILE WALLMOUNT RACK ENCLOSURE CABINET 120V SER

  • Compact, Low-Profile Design
  • Supports latest generation edge server and
  • networking equipment up to 30” (762mm)
  • NetBotz Physical Security Options
  • High Weight Load Capacity – up to 250lb
  • (113kg)
  • Pre-Integration Capability
  • Replaceable dust filter

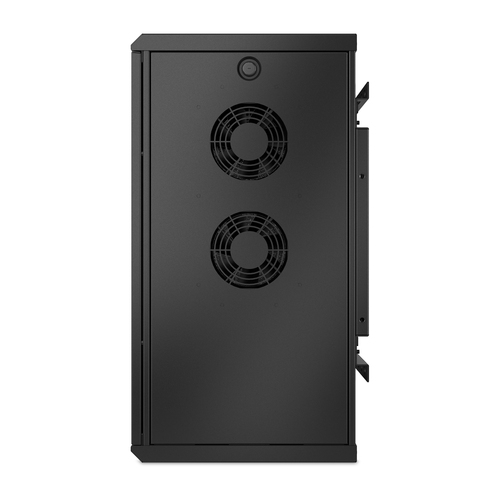

  • Integrated fans
  • Wall Mount or Floor Standing Configuration
  • Bracket for non-rack mounted equipment
  • Lithium Ion UPS options
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
AR106V
Condition
New
Category
Power & Rack Equipment › Rack Equipment
1GPA category
Hardware

Overview

Ideal for retail, healthcare, educational facilities and light industrial spaces, the low-profile APC wall mount rack offers an efficient solution for deploying hyperconverged server and networking for edge computing applications. The rack enclosure allows longer depth equipment to be wall mounted, up to 30 inches deep. A detachable wall bracket and optional casters (sold separately) allow the server rack to be mounted on either the wall or stand alone on the floor. A dust filter and two integrated fans allow deployment in light-industrial environments. Shock packaging is included and allows optional equipment pre-installed before shipment, speeding IT deployment. APC Smart-UPS, APC NetBotz Physical and Environmental Security, and APC EcoStruxure IT can be configured with this cabinet (sold separately). 6U Vertical wall mount cabinet, 30 mounting depth, 250lb weight capacity, 19 rack width, ships fully assembled, MERV 5/G3 dust filter and 120v integrated fans included, input connector IEC 60320 C13, 5 year APC warranty

Specifications

Features
Rack capacity6U
TypeWall mounted rack
Maximum weight capacity113 kg
Product colourBlack
Key lockYes
Power
AC input voltage100 - 120 V
AC input frequency60 Hz
Weight & dimensions
Size (imperial)48.3 cm (19")
Width353 mm
Depth968 mm
Height648 mm
Weight36.3 kg
Mounting depth (min)76.2 cm
Mounting depth (max)76.2 cm
Packaging data
Package width1064 mm
Package depth734 mm
Package height427 mm
Package weight44.9 kg
Technical details
Compliance certificatesRoHS

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
