Overview

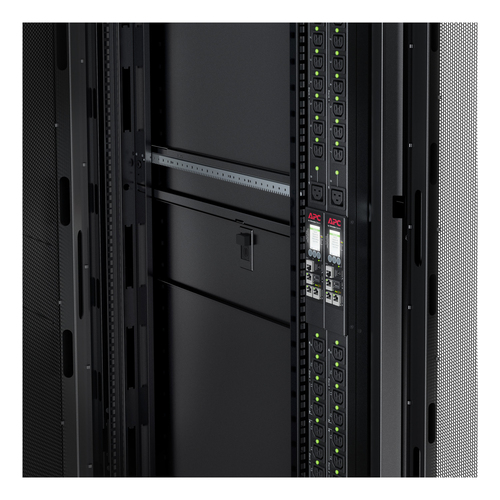

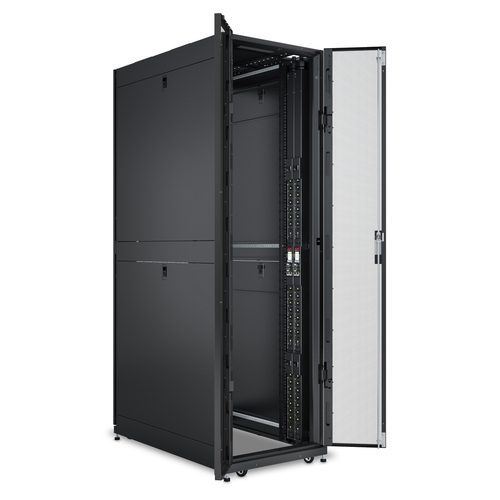

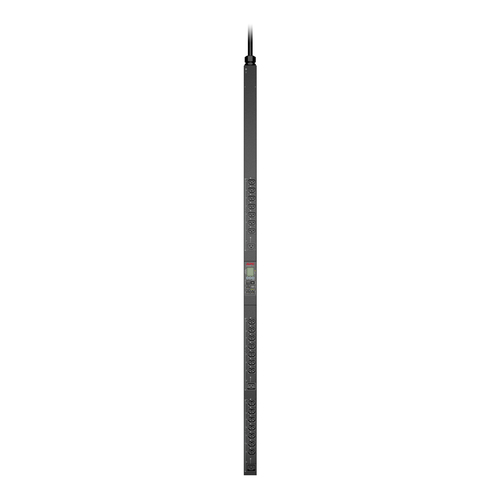

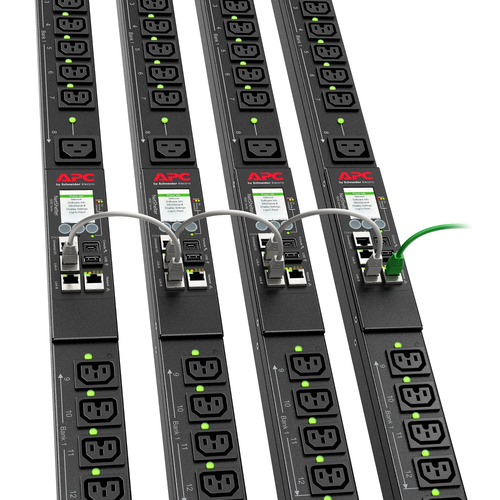

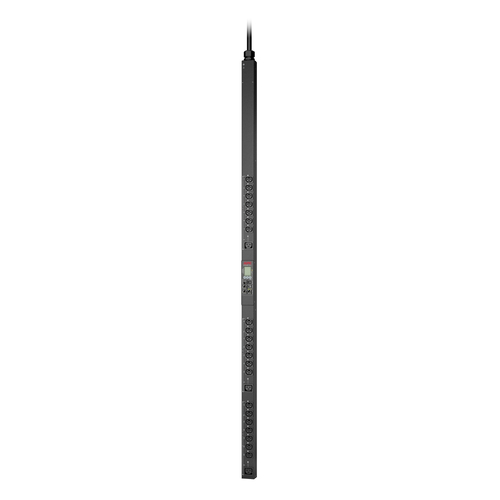

It is a switched rack PDU with a maximum current capacity of 20A and an input voltage of 415V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60309 20A 3P + N + PE plug. The PDU is designed for ZeroU mounting.
Specifications
Design
| PDU types | Switched |
|---|
| Type | Three-phase |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
|---|

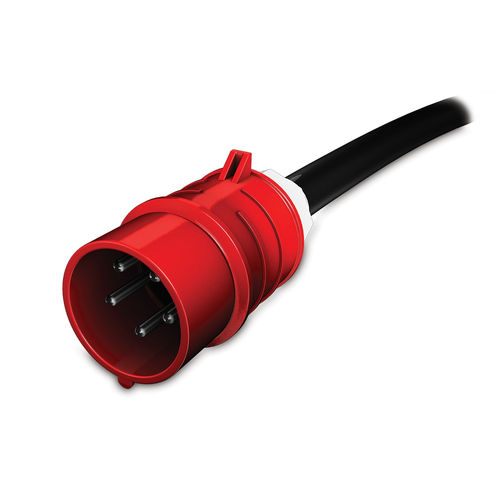

| Input connection type | IEC 60309 20 A 3P + N + PE |
|---|
Features
| Cable length | 1.82 m |
|---|
Power
| Nominal input voltage | 415 3 phases |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 16 A |
|---|
| Nominal output voltage | 200 - 208 V |
|---|
| Output voltage | 208 V; 240 V |
|---|
| Load capacity | 11000 VA |
|---|
| Number of phases | 3 |
|---|
| Maximum power | 11500 W |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | cUL listed; FCC part 15 class A; PSE |
|---|
Sustainability
| Sustainability compliance | Yes |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 60 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3048 m |
|---|
| Non-operating altitude | 0 - 15240 m |
|---|
Weight & dimensions
| Width | 55 mm |
|---|
| Depth | 46 mm |
|---|
| Height | 1791 mm |
|---|
| Weight | 7 kg |
|---|
Packaging data
| Package weight | 8.95 kg |
|---|
| Package width | 165 mm |
|---|
| Package depth | 114 mm |
|---|
| Package height | 2002 mm |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
|---|
| Removable battery | Yes |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 8537109899 |
|---|
| Total carbon footprint (kg of CO2e) | 1246.3338584171 |
|---|
| Warranty period | 3 year(s) |
|---|
