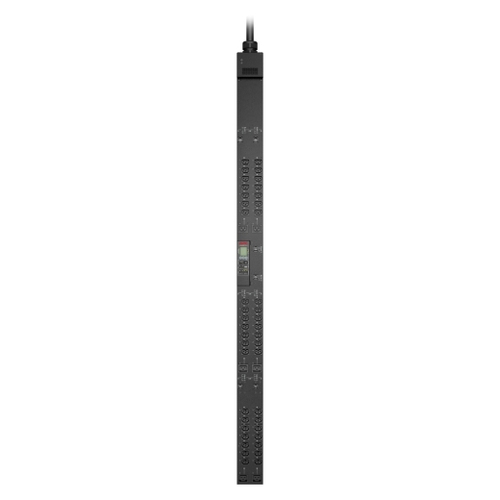

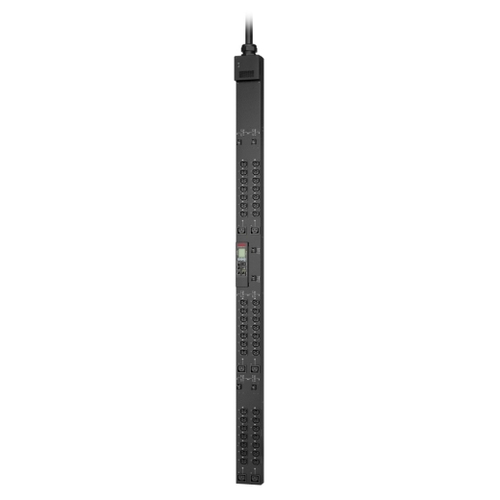

APC APDU9967 power distribution unit (PDU) 0U Black

Part number APDU9967

RACK PDU 9000 SWITCHED ZEROU 17.2KW 208V 42 C13 6 C19

Flash Upgradeable
Wireless Connectivity
Wide range of input and output connections
Rack-Mountable
Single input power source
Alarm Thresholds
EcoStruxure IT Ready
Enhanced Cybersecurity
Multi-tier user access
Network Management Capabilities
Gigabit Ethernet Connectivity
1% Metering Accuracy

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: APDU9967
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

With Industry leading reliability, manageability, and security, APC Switched Rack PDU's provide advanced load management plus on/off outlet level power cycling and sequencing control.

Specifications

Design
PDU types	Switched
Type	Single-phase
Rack capacity	0U
Mounting	Horizontal/Vertical
Product colour	Black

Ports & interfaces

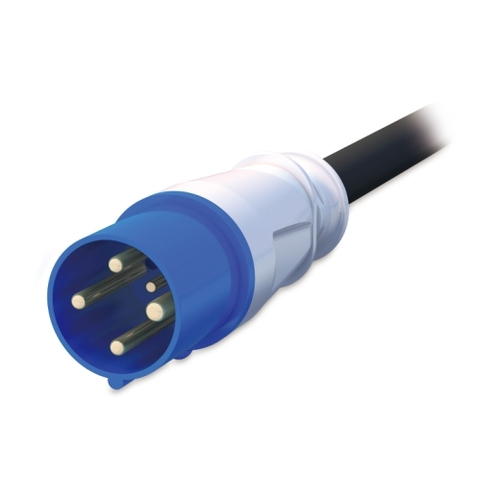

Power plug	IEC 60309
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler

Features
Cable length	1.8 m

Power
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	48 A
Block 1 output current	60 A
Block 2 output current	60 A
Nominal output voltage	208 V
Output voltage	208 V
Load capacity	17300 VA
Maximum input current per phase	60 A
Maximum total current draw per phase	48 A
Power protection features	Overload
Maximum power	17300 W

Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m
Operating temperature (T-T)	23 - 140 °F

Weight & dimensions
Width	111 mm
Depth	76 mm
Height	1833 mm
Weight	14.5 kg

Packaging data
Package weight	20 kg
Package width	221 mm
Package depth	112 mm
Package height	2149 mm

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
