Products › Power & Rack Equipment

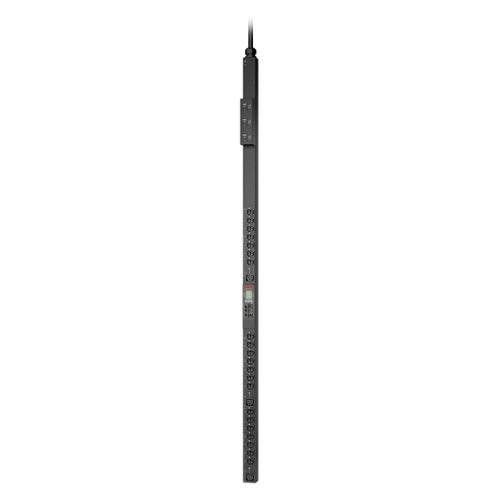

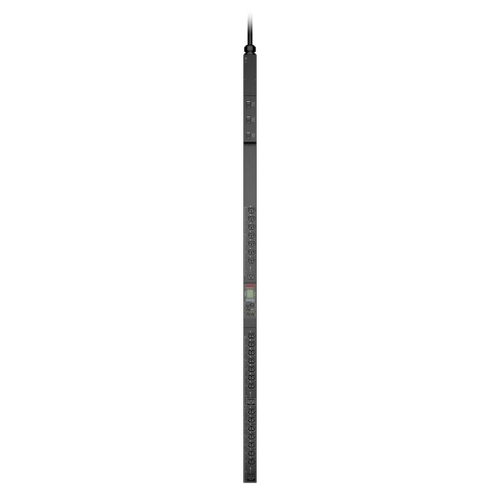

APC NetShelter Switched Rack PDU, 9K series, 0U, 8.6kW, 208V, 21 C13 and C15, 3 C19 and C21 outlets
Part number APDU9965
RACK PDU 9000 SWITCHED ZEROU 8.6KW 208V 21 C13 3 C19
- Switched 0U Black
- 24 AC outlet(s) C13 coupler, C15 coupler, C19 coupler, C21 coupler
- 8600 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- APDU9965
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
Field-replaceable NMC
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).

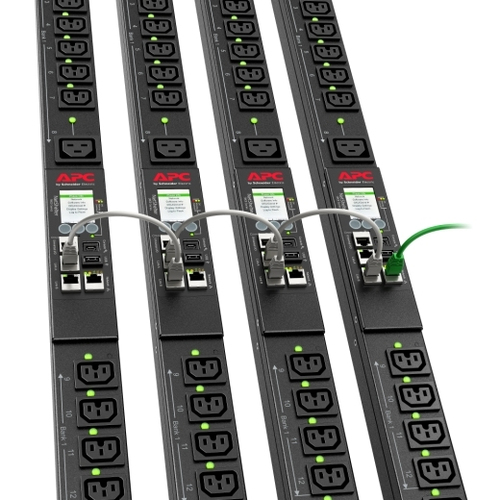

C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
Specifications
| PDU types | Switched |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|

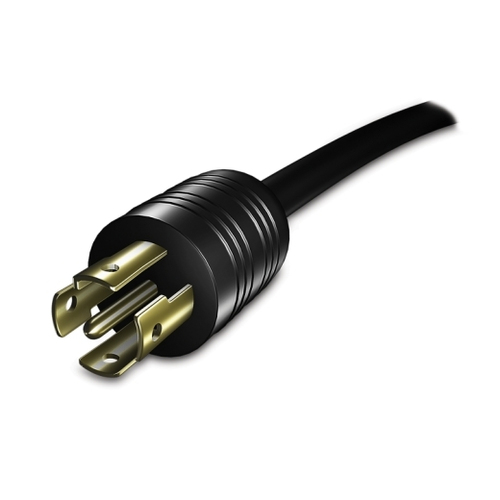

| Power plug | NEMA L21-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Cable length | 1.8 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| Maximum current | 30 A |
| Output voltage | 208 V |
| Load capacity | 8600 VA |
| Maximum power | 8600 W |
| Certification | CULus, FCC 15 A, ICES-003 |
|---|
| Operating temperature (T-T) | -5 - 60 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Width | 56 mm |
|---|---|
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 8.18 kg |
| Package weight | 10.3 kg |
|---|---|
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
