APC BY SCHNEIDER ELECTRIC

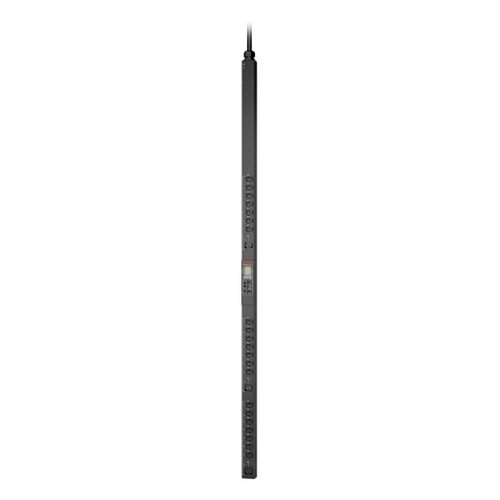

APC Rack PDU 9000 Switched, ZeroU, 5.7kW, 200/208V, (21) C13/C15 & (3) C19/C21

Part number APDU9961

RACK PDU 9000 SWITCHED ZEROU 5.7KW 200/208V 21 C13 & 3 C19

Three-phase Switched 0U Black
24 AC outlet(s) C13 coupler, C15 coupler, C19 coupler, C21 coupler
5700 W

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: APDU9961
Condition: New
Category: Power & Rack Equipment › Rack Equipment
1GPA category: Hardware

Overview

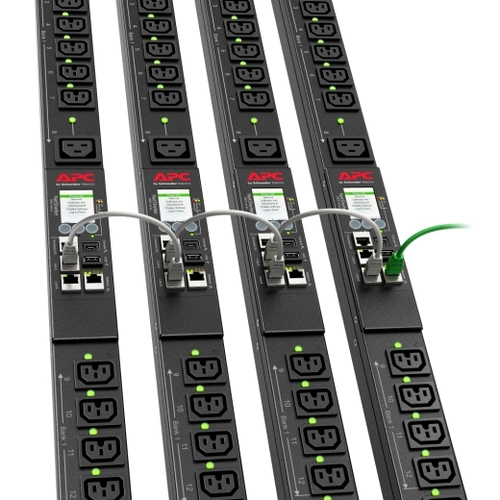

Field-replaceable NMC

Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.

High Retention Outlets

With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.

60C Operating Temperature

Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).

C13/C15 and C19/C21 Hybrid Outlets

Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.

Hydraulic Magnetic Circuit Breakers

Provide increased availability by maintaining trip current over a wide temperature range.

Specifications

Design
PDU types	Switched
Type	Three-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces
AC outlets quantity	24 AC outlet(s)

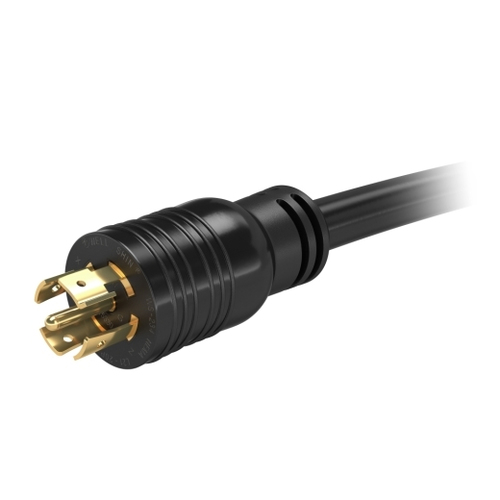

Power plug	NEMA L21-20P
AC outlet types	C13 coupler, C15 coupler, C19 coupler, C21 coupler

Features
Cable length	1.8 m

Power
Nominal input voltage	208 V
AC input frequency	50 - 60 Hz
Maximum current	20 A
Output voltage	208 V
Load capacity	5700 VA
Maximum power	5700 W

Certificates
Compliance certificates	RoHS
Certification	CUL, FCC 15 A, IEC 62368-1

Sustainability
Sustainability compliance	Yes

Operational conditions
Operating temperature (T-T)	-5 - 60 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%
Operating altitude	0 - 3048 m
Non-operating altitude	0 - 15240 m

Weight & dimensions
Width	55 mm
Depth	46 mm
Height	1792 mm
Weight	6.91 kg

Packaging data
Package weight	8.82 kg
Package width	165 mm
Package depth	114 mm
Package height	2002 mm

Logistics data
Warranty period	3 year(s)

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
