APC BY SCHNEIDER ELECTRIC
APC Rack PDU 9000 Switched, ZeroU, 20A, 208V, (21) C13/C15 & (3) C19/C21, L620 Cord
Part number APDU9959NA3
RACK PDU 9000 SWITCHED ZEROU 20A 208V 21 C13 3 C19 L620 CORD
- 1-Year Secure Network Management Card subscription included
- It can handle a maximum power capacity of 11.5kW, suitable for demanding applications
- It includes 21 IEC C13 and C15 outlets and 3 IEC C19 and C21 outlets, offering extensive connectivity
- The ZeroU mounting design helps save rack space and improves cable management
- Allows for remote monitoring and control, enhancing power management capabilities
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- APDU9959NA3
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview
It is a switched rack PDU with maximum current capacity of 20A and an input voltage of 208V. It features 21 C13 and C15 outlets and 3 C19 and C21 outlets, connected via an IEC 60320 L6-20P plug. This PDU is designed for ZeroU mounting.
Specifications
| PDU types | Switched |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|

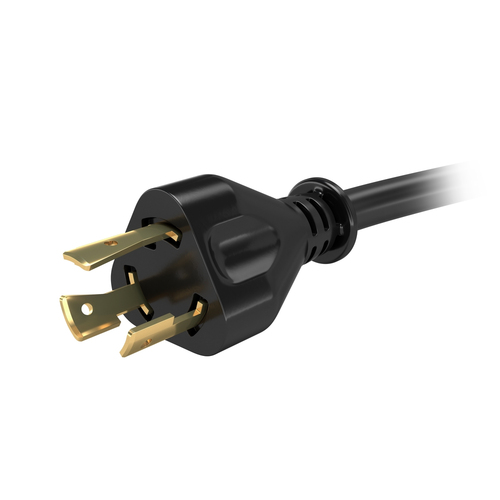

| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Input connection type | IEC 60320 L6-20P |
| Nominal input voltage | 200; 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 200 - 208 V |
| Output voltage | 208 V; 200 V |
| Load capacity | 3300 VA |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; FCC part 15 class A; PSE |
| Operating temperature (T-T) | -5 - 60 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Width | 55 mm |
|---|---|
| Depth | 46 mm |
| Height | 1797 mm |
| Weight | 5.61 kg |
| Package weight | 7.86 kg |
|---|---|
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Removable battery | Yes |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | India |
|---|---|
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 1550.2280268984 |
| Warranty period | 3 year(s) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
