Products › Power & Rack Equipment
APC Rack PDU 9000 Switched, ZeroU, 16A, 100-240V, (21) C13/C15 & (3) C19/C21, Japan
Part number APDU9959J
NETSHELTER RACK PDU 9000 SWITCHED ZEROU 16A 100-240V 21 C13
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- APDU9959J
- Condition
- New
- Category
- Power & Rack Equipment › Rack Equipment
- 1GPA category
- Hardware
Overview

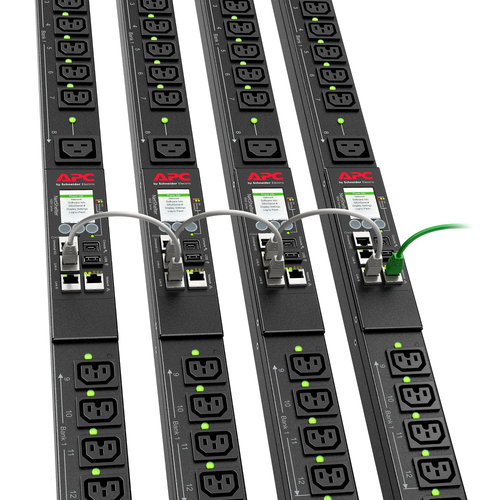

Field-replaceable NMC
Integrated Network Management Card/Display Module can be replaced in the field to minimize downtime disruption in the unlikely event of a failure.
High Retention Outlets
With no special power cords required, high retention outlets provide up to twice the holding force to reduce risk of accidental disconnect on 9000 series PDUs.
60C Operating Temperature
Select 9000 series PDUs provide the ability to operate in a maximum ambient air temperature of 60C (140F) at full load ensuring reliability and availability even in today's high density deployments. Other models allow up to 45C (113F).

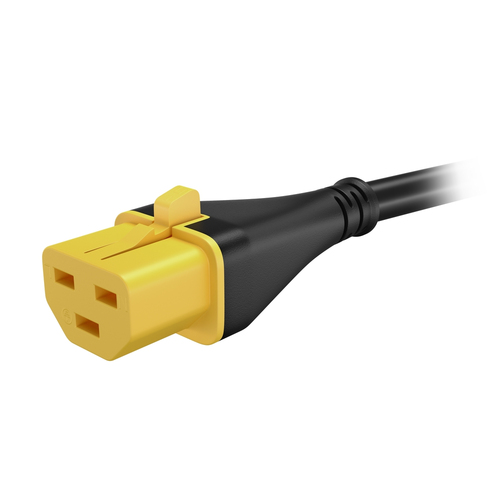

C13/C15 and C19/C21 Hybrid Outlets
Available on select 9000 series PDUs only, Industry 1st hybrid outlets allow 60C operating temperature at full load, are fully compatible with standard C14 and C20 power cords, and are future proofed for implementation of higher temperature rated devices requiring C16 and C21 power cords.
Hydraulic Magnetic Circuit Breakers
Provide increased availability by maintaining trip current over a wide temperature range.
Specifications
| PDU types | Switched |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|

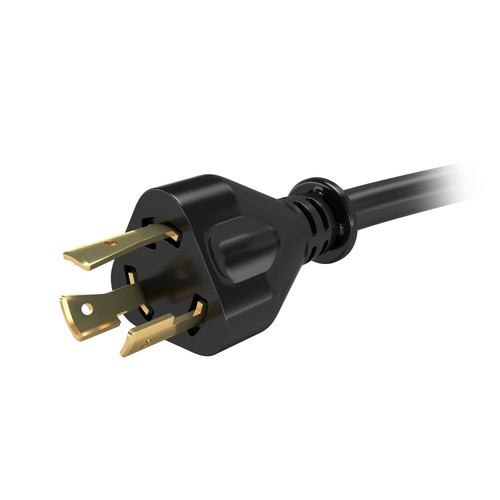

| Power plug | NEMA L6-20P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Nominal input voltage | 200 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 16 A |
| Nominal output voltage | 200 V |
| Output voltage | 200 V |
| Load capacity | 3300 VA |
| Compliance certificates | RoHS |
|---|---|
| Certification | FCC 15 A, PSE |
| Sustainability compliance | Yes |
|---|
| Operating temperature (T-T) | -5 - 60 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Width | 55 mm |
|---|---|
| Depth | 46 mm |
| Height | 1797 mm |
| Weight | 5.55 kg |
| Package weight | 7.86 kg |
|---|---|
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
| Warranty period | 3 year(s) |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
