Products › Power & Rack Equipment
APC Rack PDU, 9000 switched, 0U, 30A, 200V and 208V, 21 C13 and C15, 3 C19 and C21 sockets
Part number APDU9941
RACK PDU 9000 SWITCHED ZEROU 30A 200/208V 21 C13 3 C19
- 1-Year Secure Network Management Card subscription included
- Ideal for colocation, large data centers or distributed IT sites
- Remote management of rack PDUs for efficient time-saving
- Plan capacity and balance loads with +/- 1% metering accuracy (amps, volts, kW, kWh)
- Gigabit ethernet connectivity
- Real-time remote monitoring of connected load through EcoStruxureTM IT and other platforms
- Power sequencing delays determine the order in which power is turned on or off
- Zero U toolless installation
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- APDU9941
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

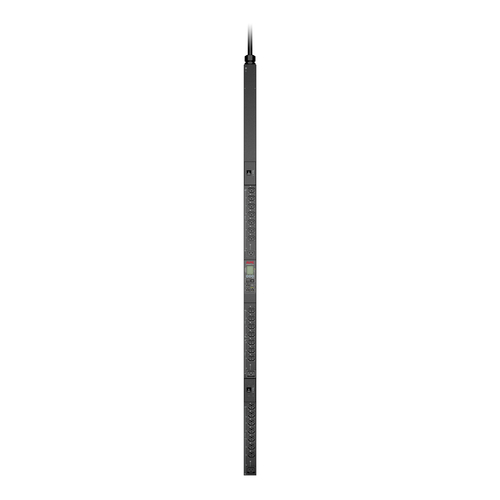

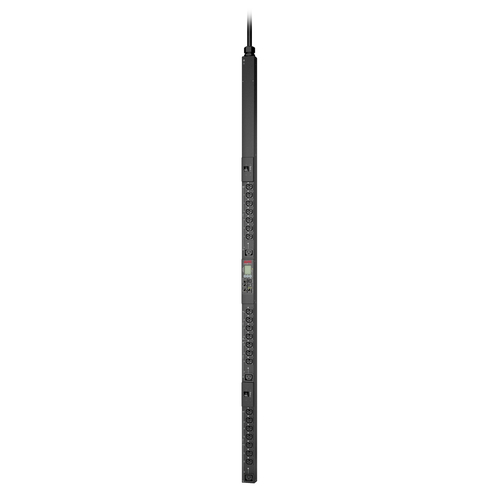

The APC Switched Rack PDU distributes reliable power within a rack through a single input and multiple output receptacles The APDU9941 offers advanced load management combined with remote on/off switching control of individual outlets for power cycling, delayed power sequencing, and outlet use management The 0U PDU includes a NEMA L6-30P input plug with 3 05m (10 ft) cord, (21) IEC 60320 C13/C15 and (3) IEC 60320 C19/C21 hybrid outlet receptacles The hybrid outlets allow 60°C operating temperature at full load, are compatible with standard C14 and C20 power cords, and are future-proofed for new C16 and C21 power cords required for higher temperature rated devices The Network Management Card provides enhanced cybersecurity with secured interfaces and modified password policy The rack PDU integrates with EcoStruxure IT through Network Management Card and can be accessed, configured, and managed remotely via Web, SNMP and Command Line Interface Color user-interactive LCD interface details current, real power, voltage, and energy measurements for local user access The outlet level control allows power on/off functionality for power recycling/reboot of remote equipment and restricts unauthorized use of individual outlets The Switched Rack PDU includes a temperature/humidity sensor port, locking IEC outlets when used with locking power cords, low-profile circuit breakers and USB port for local Firmware updates The rack PDU supports daisy-chain of up to 32 PDUs on a single IP address, thereby reducing networking cost The rack PDU comes with a standard three-year warranty
Specifications
| PDU types | Switched |
|---|---|
| Type | Single-phase |
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|

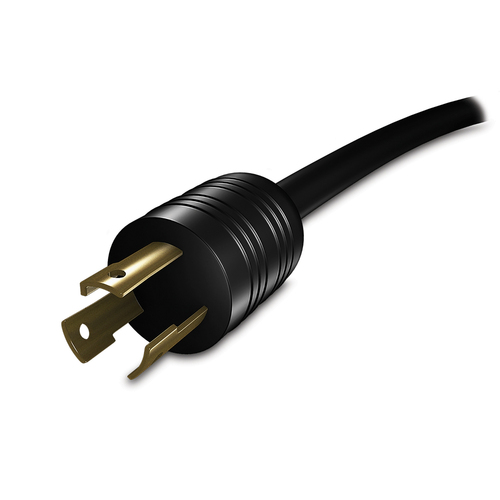

| Power plug | NEMA L6-30P |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Ethernet LAN (RJ-45) ports | 1 |
| Input connection type | NEMA L6-30P |
| Cable length | 3 m |
|---|
| Nominal input voltage | 208; 200 V |
|---|---|
| Maximum current | 30 A |
| Nominal output voltage | 200 - 208 V |
| Output voltage | 200 V; 208 V |
| Load capacity | 4992 VA |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; FCC part 15 class A; PSE |
| Sustainability compliance | Yes |
|---|
| Operating temperature (T-T) | -5 - 60 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3048 m |
| Non-operating altitude | 0 - 15240 m |
| Width | 55 mm |
|---|---|
| Depth | 46 mm |
| Height | 1829 mm |
| Weight | 8.5 kg |
| Manual | Yes |
|---|
| Package weight | 10 kg |
|---|---|
| Package width | 165 mm |
| Package depth | 124 mm |
| Package height | 2040 mm |
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| SCIP number | 31346aed-552c-4a16-81d9-e683a383b6da |
| Removable battery | Yes |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | India |
|---|---|
| Customs product code (TARIC) | 8537109899 |
| Total carbon footprint (kg of CO2e) | 2641.6506196672 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
