Overview

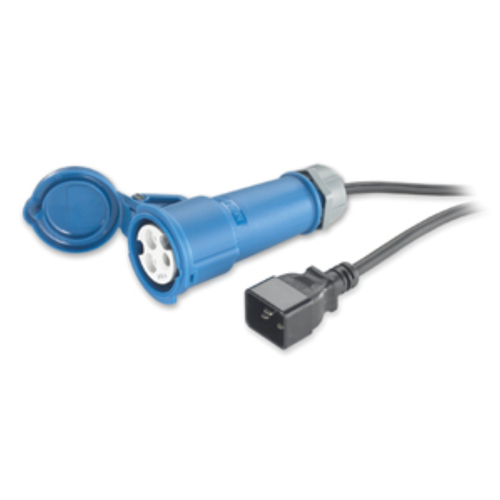

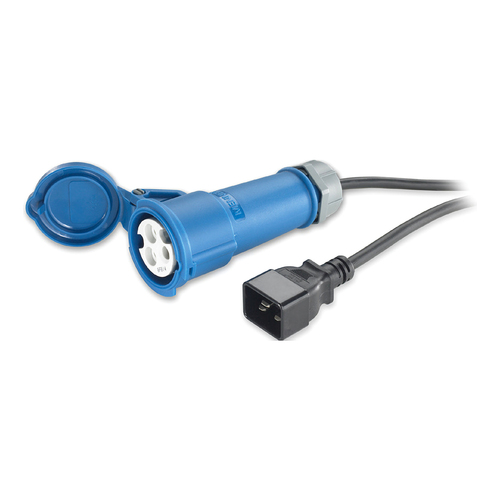

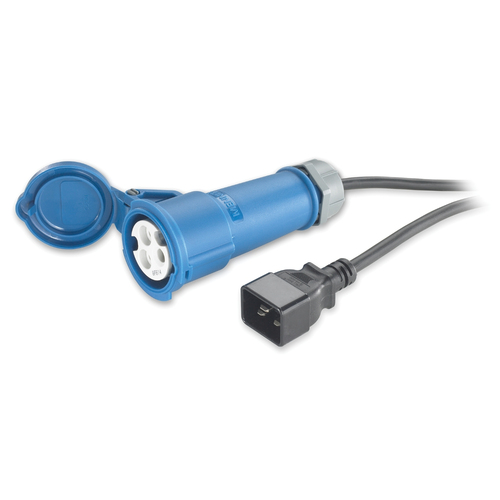

"This cable connects an IEC C19 outlet to an IEC 309-16A connector" "It can be used as a means to plug in a 16A IEC 309 plug into a Rack PDU with IEC C19 outlets"
Specifications
Features
| Product colour | Black |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Female |
|---|
| Cable length | 2.4 m |
|---|
| Connector 1 | IEC C20 |
|---|
Power
| Input voltage | 230 V |
|---|
| Input current | 16 A |
|---|
Operational conditions
| Operating temperature (T-T) | -10 - 40 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 20 - 80% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | VDE |
|---|
Weight & dimensions
| Width | 292 mm |
|---|
| Depth | 95 mm |
|---|
| Height | 95 mm |
|---|
| Weight | 500 g |
|---|
Packaging data
| Package width | 305 mm |
|---|
| Package height | 102 mm |
|---|
| Package weight | 610 g |
|---|
Technical details
| Sustainable packaging | No |
|---|
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 8544429090 |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Total carbon footprint (kg of CO2e) | 32.24032092053509 |
|---|
Other features
| Input connection type | IEC 60320 C20 |
|---|
| Dimensions (WxDxH) | 292 x 95 x 95 mm |
|---|
| Country of origin | France |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
