APC BY SCHNEIDER ELECTRIC

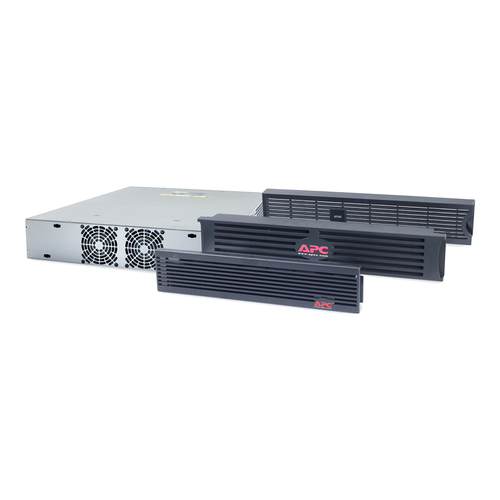

APC Step-Down Transformer RM 2U 208V IN 120V OUT w/Hardwire Input/Output

Part number AP9628

APC STEP-DOWN TRANSFORMER 208V-120V 2U HW

APC Step-Down Transformer
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output
Transformer for Step-down or Step-up or Isolation
Step down transformer placed upstream of the UPS to avoid inrush current & eliminates oversize transformer
Output Connections (1) Hard Wire 3-wire (H N + G) (Battery Backup)

Overview

Transformer for Step-down or Step-up or Isolation

Step down transformer placed upstream of the UPS to avoid inrush current and saturation eliminating need to oversize transformer

Meets UL Requirements

Design
Product colour	Black

Ports & interfaces
Input connection type	Hard Wire 3-wire (2PH + G)
Output connections	1x Hard Wire 3-wire (H N + G)

Power
Nominal input voltage	208 V
Nominal output voltage	120 V
Load capacity	5000 VA
Maximum input current per phase	26 A

Certificates
Certification	CSA,UL 1778,UL Listed

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
