Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

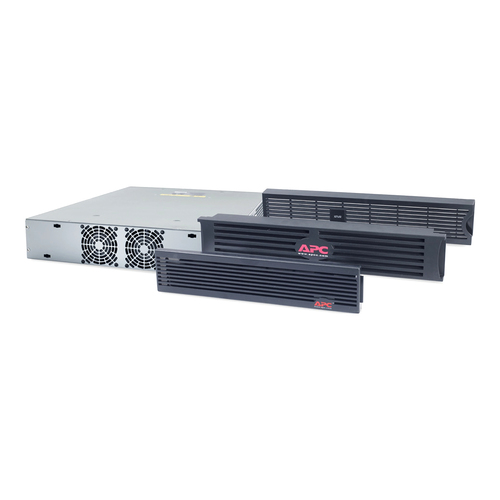

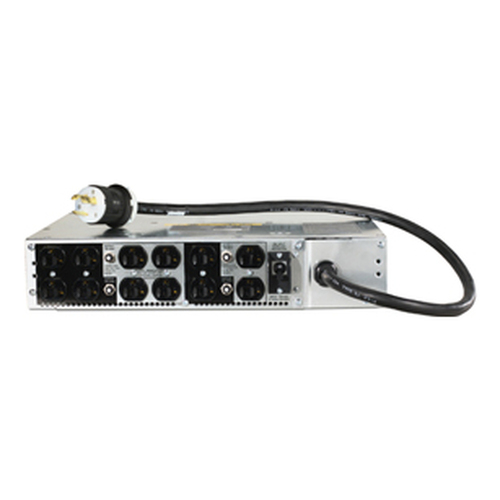

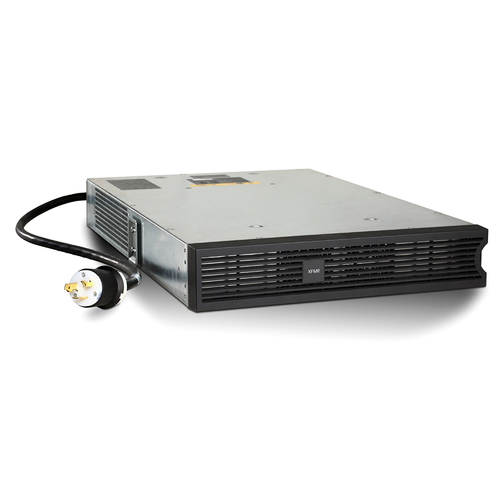

APC Step-Down Transformer RM 2U 208V IN 120V OUT; w/5-20 Receptacles
Part number AP9626
APC STEP-DOWN TRANSFORMER RM 2U 208V IN 120V OUT; W/5-20 RECEPTACLES
- APC Step-Down Transformer
- The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output.
- Includes Rack Mounting brackets & User Manual
- Rack-mounted mounting mode
- 2 years repair or replace warranty
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9626
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
The Step-Down Transformer converts high voltage (208 or 200 VAC) output into low voltage (120 or 100 VAC) output for powering low voltage AC equipment.
Specifications
| Input voltage | 208 V |
|---|---|
| Output voltage | 120 V |
| Certification | CSA/UL 1778 |
|---|
| Weight | 43.2 kg |
|---|
| Package weight | 50 kg |
|---|
| Total carbon footprint (kg of CO2e) | 4549.9 |
|---|
| I/O ports | 12 x NEMA 5-20R |
|---|---|
| Dimensions (WxDxH) | 445 x 610 x 89 mm |
| Weight (imperial) | 43.1 kg (95 lbs) |
| Package dimensions (W x D x H) | 444.5 x 609.6 x 88.9 mm (17.5 x 24 x 3.5") |
| Package dimensions (WxDxH) | 622 x 953 x 254 mm |
| Package weight (imperial) | 49.9 kg (110 lbs) |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
