Overview

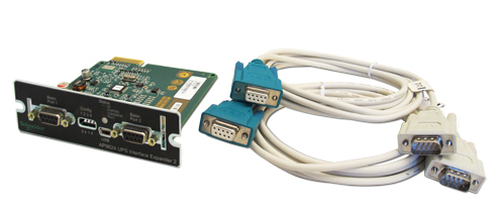

The UPS Interface Expander 2 provides two additional computer interface ports for a UPS with a SmartSlot™. This enables the UPS to provide a graceful system shutdown for connected servers or other devices during an extended power outage via PowerChute Serial Shutdown. The Interface Expander 2 also monitors the UPS and reports power events in the PowerChute software.
Specifications
Ports & interfaces
| Host interface | Serial |
|---|
| Output interface | Serial |
|---|
Design
| Internal | Yes |
|---|
| Certification | C-tick, CE, EN 55022, EN 55024, FCC, IEC 62040-2 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Technical details
| Total carbon footprint (kg of CO2e) | 2.94 |
|---|
Weight & dimensions
| Width | 121 mm |
|---|
| Depth | 114 mm |
|---|
| Height | 38 mm |
|---|
| Weight | 70 g |
|---|
Packaging data
| Package width | 235 mm |
|---|
| Package depth | 165 mm |
|---|
| Package height | 51 mm |
|---|
| Package weight | 410 g |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
