Overview

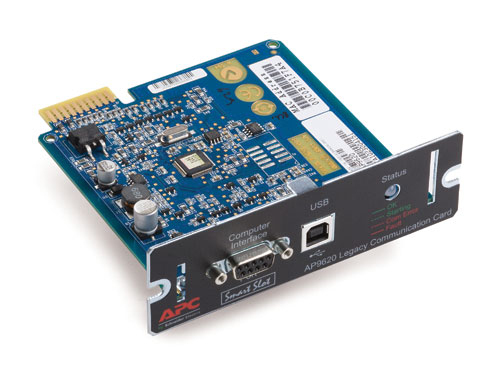

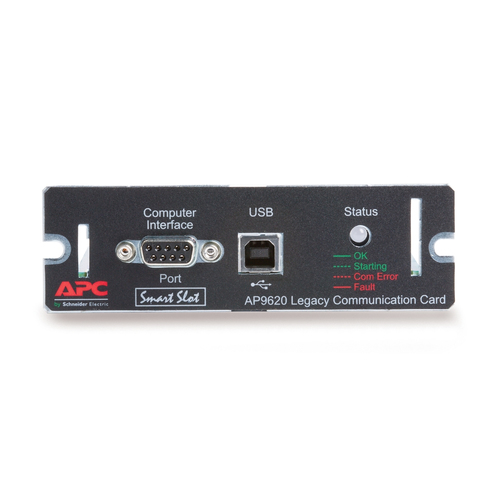

The Legacy Communications SmartSlot Card provides serial communications support for the UPS-Link protocol for SC, SMC, SMX, SMT, SURTD, SRT UPS models. These UPS devices no longer communicate using the UPS-Link protocol. The Legacy Communications Card can be used for custom applications using the UPS-Link protocol.
Specifications
Ports & interfaces
| USB 2.0 ports quantity | 1 |
|---|
| Serial ports quantity | 1 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 45 °C |
|---|
| Storage temperature (T-T) | -5 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Technical details
| Total carbon footprint (kg of CO2e) | 109.58 |
|---|
Weight & dimensions
| Width | 121 mm |
|---|
| Depth | 114 mm |
|---|
| Height | 38 mm |
|---|
| Weight | 80 g |
|---|
Packaging data
| Package weight | 340 g |
|---|
Logistics data
| Harmonized System (HS) code | 84733020 |
|---|
Other features
| Connectivity technology | Wired |
|---|
| Package dimensions (WxDxH) | 235 x 159 x 51 mm |
|---|
