Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

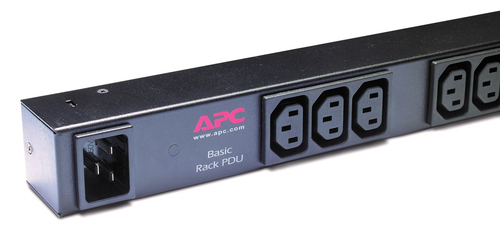

APC Basic Rack PDU AP9572 power distribution unit (PDU) 15 AC outlet(s) 0U Black
Part number AP9572
BASIC PDU 208/230V 16A 0U RM 15XC13
- Basic 0U Black
- 15 AC outlet(s) C13 coupler
- 3680 W
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9572
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Rack PDU, Basic, Zero U, 16A, 208/230V, (15) C13.
Specifications
| PDU types | Basic |
|---|---|
| Rack capacity | 0U |
| Mounting | Vertical |
| Product colour | Black |
| AC outlets quantity | 15 AC outlet(s) |
|---|---|
| Power plug | C20 coupler |
| AC outlet types | C13 coupler |
| Input connection type | IEC-320 C20 |
| Output connections | (15) IEC 320 C13 |
| Cable length | 2.5 m |
|---|
| Nominal input voltage | 23 V |
|---|---|
| Output voltage | 230 V |
| Load capacity | 3680 VA |
| Maximum input current per phase | 16 A |
| Maximum total current draw per phase | 16 A |
| Maximum power | 3680 W |
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 44 mm |
|---|---|
| Depth | 44 mm |
| Height | 620 mm |
| Weight | 2 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
