Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

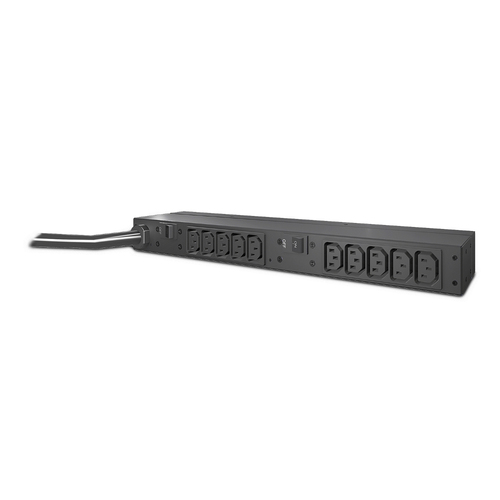

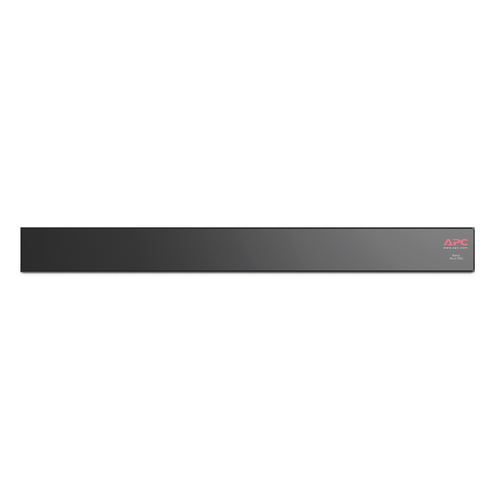

APC Rack PDU, Basic, 1U, 30A, 208V, (10) C13
Part number AP9571A
RACK PDU, BASIC, 1U, 30A, 208V, NEMA L6-30P, 10 IEC 60320 C13, RELIABLE RACK POW
- Suitable for high-density power distribution in data centers and network environments
- It features 10 IEC 60320 C13 outlets, providing flexibility to connect a variety of IT equipment
- The 1U horizontal rack-mount design optimizes the use of space
- Easy to install and integrate into existing rack setups
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9571A
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Reliable rack power distribution designed to increase manageability and efficiency in the data center The output and input connections are (10) C13 Real-time remote monitoring of connected loads User-defined alarms warn IT and data center managers of potential circuit overloads to prevent accidental power loss to critical equipment.
Specifications
| Rack capacity | 1U |
|---|---|
| Product colour | Grey |
| Input connection type | NEMA L6-30P |
|---|
| Cable length | 3.65 m |
|---|
| Nominal input voltage | 200; 208; 230 V |
|---|---|
| AC input frequency | 60 Hz |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Maximum total current draw per phase | 24 A |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | cUL listed; PSE; UL listed |
| Operating temperature (T-T) | -15 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 445 mm |
|---|---|
| Depth | 77 mm |
| Height | 44 mm |
| Weight | 2.55 kg |
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| Halogen free | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Country of origin | India |
|---|---|
| Customs product code (TARIC) | 8544429090 |
| Total carbon footprint (kg of CO2e) | 8397.9475761988 |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
