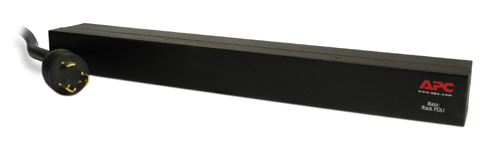

APC Rack PDU, Basic, 1U, 30A, 208V power distribution unit (PDU) Black
Part number AP9570
AP9570 - POWER DISTRIBUTION UNIT - 1U - 208 V - NEMA L6-30P - 4 IEC 60320 C19 -
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9570
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L6-30P |
|---|---|
| Output connections | 4x IEC 320 C19 |
| Cable length | 3.05 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 4992 VA |
| Certification | cUL Listed,CSA,METI Denan,UL 60950,UL Listed, RoHS 7b Exemption |
|---|
| Width | 447 mm |
|---|---|
| Depth | 64 mm |
| Height | 44 mm |
| Weight | 2.73 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
