APC BY SCHNEIDER ELECTRIC

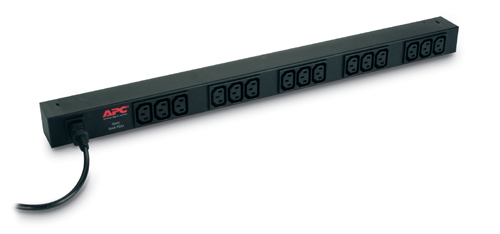

APC RACK PDU BASIC ZERO U 10A 230V power distribution unit (PDU) 15 AC outlet(s) 0U Black

Part number AP9568

AP9568 - POWER DISTRIBUTION UNIT - VERTICAL (0U) - IEC 60320 C14 - 15 IEC 60320

Single-phase Basic 0U Black
15 AC outlet(s) C13 coupler
2300 W

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AP9568
Condition: New
Category: Power & Rack Equipment › Power Equipment
1GPA category: Hardware

Overview

Description - APC Basic Rack PDU, Input : 208, 230V , Input Connection Type : IEC-320 C14 , Cord Length : 6.5 feet ( 1.98 meters ) , Output : 208, 230V , Output Connections : (15)IEC 320 C13

Features - Low Cost Power Distribution, Toolless Mounting Capabilities, Vertical Mounting Capabilities

Includes - Installation Guide, Rack Mounting Brackets, Toolless Mounting Kit

Output:

Output Voltage(s) (main only) - 208, 230 V

Maximum Total Current Draw per Phase - 10 A

Output Connections - (15)IEC 320 C13

Input:

Nominal input voltage - 208, 230

Input frequency (Hz) - 50/60 Hz

Input Connection Type - IEC-320 C14

Cord Length - 6.5 feet ( 1.98 meters )

Acceptable Input Voltage - 200-240 VAC

Maximum Input Current per phase - 10.0 A

Load Capacity - 2300

Specifications

Design
PDU types	Basic
Type	Single-phase
Rack capacity	0U
Mounting	Vertical
Product colour	Black

Ports & interfaces
AC outlets quantity	15 AC outlet(s)
Power plug	C14 coupler
AC outlet types	C13 coupler
I/O ports	Output Connections - (15)IEC 320 C13 Input Connection Type - IEC-320 C14

Features
Cable length	1.98 m

Power
Load capacity	2300 VA
Maximum input current per phase	10 A
Maximum power	2300 W

Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Width	445 mm
Depth	445 mm
Height	609.6 mm
Weight	2 kg

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
