APC BY SCHNEIDER ELECTRIC

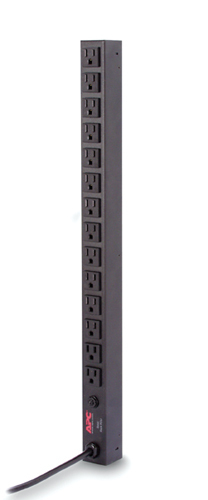

APC Basic Rack PDU power distribution unit (PDU) 0U Beige

Part number AP9567

BASIC PDU 120V 15A 0U RM 14X5-15

Manufacturer: APC BY SCHNEIDER ELECTRIC
Part number: AP9567
Condition: New
Category: Power & Rack Equipment › Rack Equipment
1GPA category: Hardware

Overview

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Specifications

Design
Rack capacity	0U
Product colour	Beige

Ports & interfaces
Input connection type	NEMA 5-15P
Output connections	14 x NEMA 5-15R

Features
Cable length	3.6 m

Power
Nominal input voltage	120 V
AC input frequency	50 - 60 Hz
Nominal output voltage	120 V
Output voltage	120 V
Load capacity	1800 VA
Maximum total current draw per phase	15 A

Certificates
Certification	cUL/CSA/ETI/UL 1363

Operational conditions
Operating temperature (T-T)	0 - 45 °C
Storage temperature (T-T)	-25 - 65 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%

Weight & dimensions
Width	44 mm
Depth	44 mm
Height	610 mm
Weight	2.18 kg
Weight (imperial)	2.18 kg (4.8 lbs)

Packaging data
Package weight	2.91 kg
Package width	178 mm
Package depth	152 mm
Package height	648 mm

Logistics data
Total carbon footprint (kg of CO2e)	55.22

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
