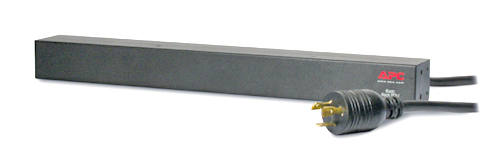

APC Rack PDU, Basic, 1U, 16A, 208V power distribution unit (PDU) Black
Part number AP9566
RACK PDU, BASIC, 1U, 16A, 208V, THE PDU FEATURES 12 IEC 60320 C13 OUTLETS, PROVI
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9566
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA L6-20P |
|---|---|
| Output connections | 12x IEC 320 C13 |
| Cable length | 3.66 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 208 V |
| Load capacity | 3328 VA |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 16 A |
| Certification | cUL Listed,CSA,UL 60950,UL Listed, RoHS 7b Exemption |
|---|
| Operating temperature (T-T) | 0 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Width | 447 mm |
|---|---|
| Depth | 57 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
