Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

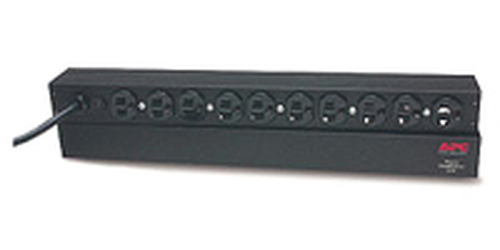

APC Basic Rack 1.8kVA power distribution unit (PDU) Black
Part number AP9562
BASIC PDU 120V 15A 1U RM 10X5-15
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP9562
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
-19 inch Rack-Mountable: Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternate power source.
-Horizontal mounting capability.
-Vertical mounting capability.
Specifications
| Product colour | Black |
|---|
| Input connection type | NEMA 5-15P |
|---|---|
| Output connections | (10) NEMA 5-15R |
| Cable length | 3.66 m |
|---|
| Nominal input voltage | 120 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Load capacity | 1800 VA |
| Maximum input current per phase | 15 A |
| Maximum total current draw per phase | 15 A |
| Certification | cUL,CSA,GOST,METI Denan,UL 1363,UL |
|---|
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Width | 447 mm |
|---|---|
| Depth | 57 mm |
| Height | 44 mm |
| Weight | 2.5 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
