Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC
APC AP8981 power distribution unit (PDU) 24 AC outlet(s) 0U Black
Part number AP8981
SWITCHED RACK PDU 2G 11KW 230V 16A IEC309 3PNPE 0U 21XC13 3XC19
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP8981
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Switched Rack PDU , Input: 400V 3PH , Input Connections: IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E , Cord Length: 6 feet ( 1.83 meters ) , Output: 208V, 230V , Output Connections: IEC 320 C13,IEC 320 C19.
Includes: Installation guide, Rack Mounting brackets, Safety guide, Sample locking IEC power cord, Serial configuration cable.
Specifications
| PDU types | Metered, Switched |
|---|---|
| Rack capacity | 0U |
| Product colour | Black |
| AC outlets quantity | 24 AC outlet(s) |
|---|---|

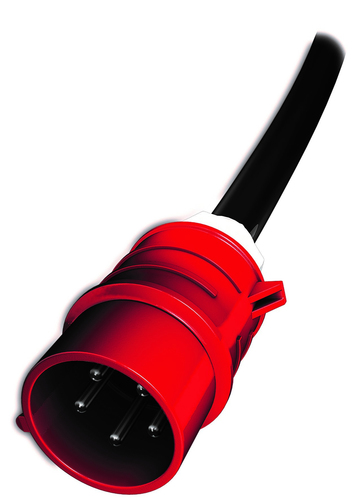

| Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
| Output connections | (21) IEC 320 C13, (3) IEC 320 C19 |
| Cable length | 1.83 m |
|---|
| Nominal input voltage | 400 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum input current per phase | 20 A |
| Maximum total current draw per phase | 20 A |
| Operating temperature (T-T) | -25 - 65 °C |
|---|---|
| Storage temperature (T-T) | -5 - 45 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Width | 56 mm |
|---|---|
| Depth | 46 mm |
| Height | 1791 mm |
| Weight | 7 kg |
| Package weight | 8.95 kg |
|---|---|
| Package width | 165 mm |
| Package depth | 114 mm |
| Package height | 2002 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
