Overview

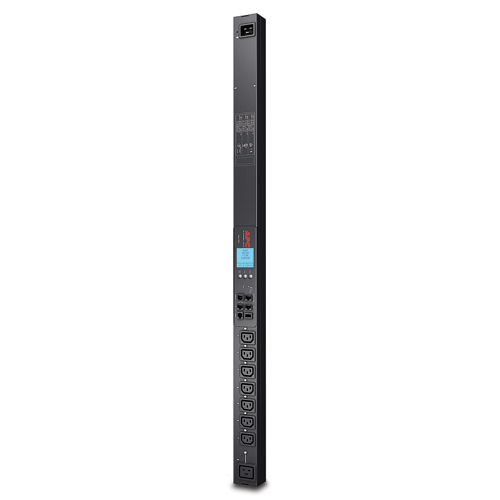

APC Switched Rack Power Distribution Units AP8958NA3 (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Specifications
Design
| PDU types | Switched |
|---|
| Rack capacity | 0U |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Power plug | NEMA L6-20P |
|---|
Power
| Nominal input voltage | 200-230 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 20 A |
|---|
| Nominal output voltage | 200-230 V |
|---|
| Maximum input current per phase | 20 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | cUL,EN 55022 A,EN 55024,EN 61000-3-2,EN 61000-3-3,FCC 15 A,ICES-003,PSE,UL,VCCI A,VDE |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 46 mm |
|---|
| Height | 988 mm |
|---|
| Weight | 3.23 kg |
|---|
Logistics data
| Total carbon footprint (kg of CO2e) | 1306.84 |
|---|
