Overview

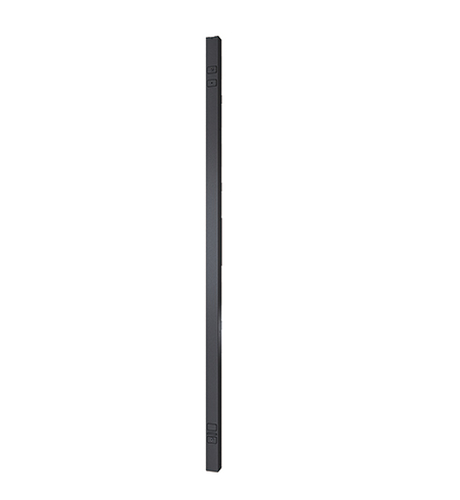

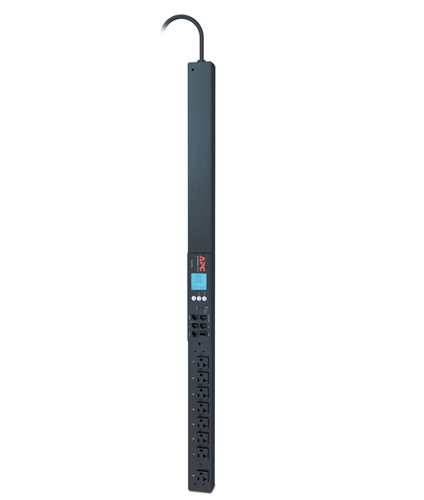

APC Switched Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and active monitoring. Remote outlet level controls allow power on/off functionality for power recycling to remotely reboot equipment and restrict unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and low profile circuit breakers. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched Rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager.
Specifications
Design
| PDU types | Switched |
|---|
| Mounting | Horizontal/Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 8 AC outlet(s) |
|---|
| Power plug | NEMA 5–15P |
|---|
| AC outlet types | NEMA 5–15R |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 3.05 m |
|---|
Power
| Nominal input voltage | 100 - 120 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 100-120 V |
|---|
| Load capacity | 1440 VA |
|---|
| Maximum input current per phase | 15 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
| Operating temperature (T-T) | 23 - 113 °F |
|---|
Weight & dimensions
| Width | 55 mm |
|---|
| Depth | 46 mm |
|---|
| Height | 988 mm |
|---|
| Weight | 4.16 kg |
|---|
Packaging data
| Package weight | 5.02 kg |
|---|
| Package width | 160 mm |
|---|
| Package depth | 108 mm |
|---|
| Package height | 1131 mm |
|---|
