APC BY SCHNEIDER ELECTRIC

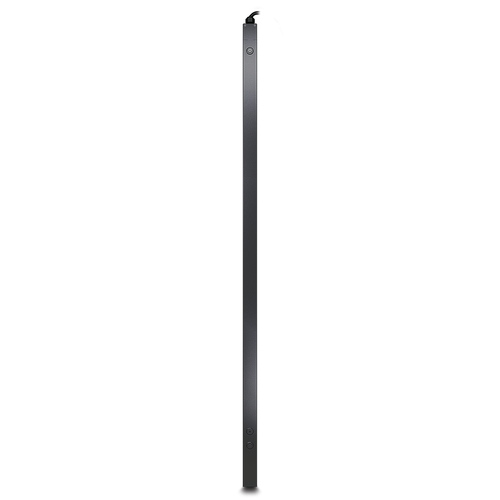

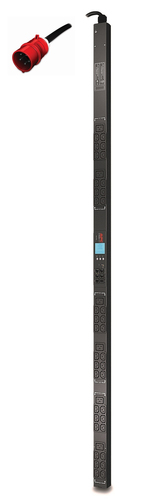

APC AP8881 power distribution unit (PDU) 42 AC outlet(s) 0U Black

Part number AP8881

RACK PDU 2G 230V 11KW 0U 36-C13 6-C19 METERED

  • Metered 0U Black
  • 42 AC outlet(s) C13 coupler, C19 coupler
  • 11000 W
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
AP8881
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.

Specifications

Design
PDU typesMetered
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity42 AC outlet(s)

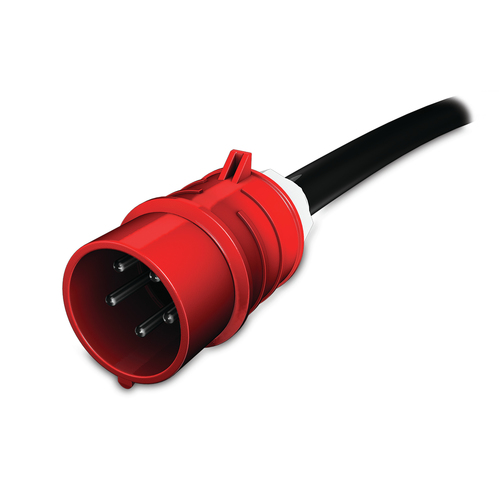

Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E
Output connections36x IEC 320 C13 6x IEC 320 C19
Features
Cable length1.83 m
Management features
MonitoringCurrent, Power, Voltage
Power
Nominal input voltage400 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage230 V
Load capacity11040 VA
Maximum input current per phase16 A
Maximum total current draw per phase16 A
Maximum power11000 W
Certificates
CertificationCSA C22.2 No. 60950,IEC 60950,UL 60950-1,VDE RoHS, REACH
Operational conditions
Operating temperature (T-T)5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Weight & dimensions
Width56 mm
Depth44 mm
Height1791 mm
Weight6.38 kg
Logistics data
Total carbon footprint (kg of CO2e)41106.13
