Products › Power & Rack Equipment

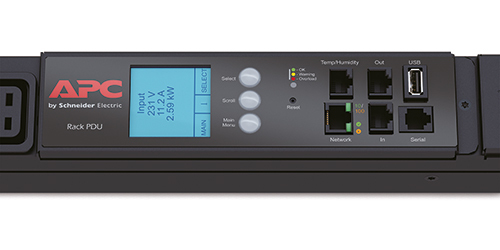

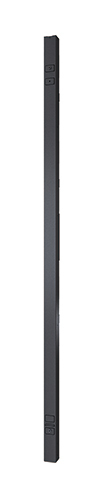

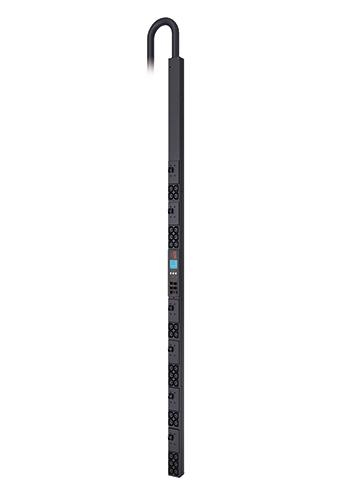

APC AP8867 power distribution unit (PDU) 30 AC outlet(s) 0U Black
Part number AP8867
RACK PDU 2G 208VAC 0U METERED 17.2KW 30 C13
- Metered 0U Black
- LCD
- 30 AC outlet(s) C13 coupler
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP8867
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
- Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.
- The aggregate current draw per power distribution unit is displayed on the unit via a digital display. The local digital display helps installers avoid overloaded circuits by providing a visible warning when the current draw is close to the maximum amperage draw of the strip.
- Define alarm thresholds in order to avoid overloaded circuits. Network and visual alarms inform the user of possible problems. (Note: Only available on units with the current monitoring capabilities. Please see SKU specifications for availability)
- Indicates overload and warning conditions based on the user-defined alarm thresholds. Alerts users of potential overloaded circuits.
- An IT-ready, scalable monitoring system that collects, organizes, and distributes critical alerts, surveillance video and key information, providing a unified view of complex physical infrastructure environments from anywhere on the network
- Quickly and easily upgrade firmware via network download for future product enhancements. Eliminates the need to replace products already installed in the field when new features are released. (Note: Networked units only)
Specifications
| PDU types | Metered |
|---|---|
| Rack capacity | 0U |
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LCD |
| AC outlets quantity | 30 AC outlet(s) |
|---|---|
| AC outlet types | C13 coupler |

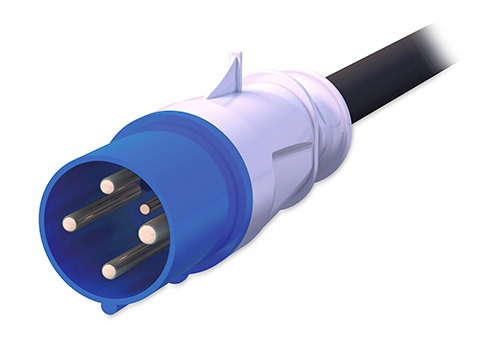

| Input connection type | IEC 309 60A 3P+PE |
| Cable length | 1.83 m |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 60 A |
| Nominal output voltage | 208 V |
| Output voltage | 208 V |
| Load capacity | 17300 VA |
| Maximum input current per phase | 48 A |
| Maximum total current draw per phase | 48 A |
| Power protection features | Overload |
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL, EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC-15 A, UL, VCCI A |
| Operating temperature (T-T) | 0 - 55 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 56 mm |
|---|---|
| Depth | 51 mm |
| Height | 1829 mm |
| Weight | 10.2 kg |
| Package weight | 14.1 kg |
|---|---|
| Package width | 221 mm |
| Package depth | 112 mm |
| Package height | 2149 mm |
| Total carbon footprint (kg of CO2e) | 59943.98 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
