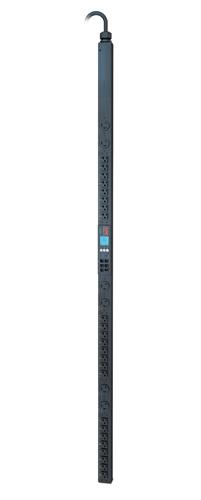

APC Rack PDU 2G power distribution unit (PDU) 30 AC outlet(s) Black
Part number AP8863
RACK PDU 208V 20A 3-PHASE 24X5-20R 6XL6-20R 0U 2G METERED
- Metered Black
- LED
- 30 AC outlet(s) NEMA 5–20R, NEMA L6-20R
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP8863
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Rack PDU 2G, Metered, ZeroU, 20A, 120/208V 3Ph, (24) 5-20R (6) L6-20R
APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable
Specifications
| PDU types | Metered |
|---|---|
| Mounting | Horizontal/Vertical |
| Product colour | Black |
| Display | LED |
| AC outlets quantity | 30 AC outlet(s) |
|---|---|
| AC outlet types | NEMA 5–20R, NEMA L6-20R |
| Input connection type | NEMA L21-20P |
| LED indicators | Alarm |
|---|---|
| Cable length | 1.83 m |
| Monitoring | Current |
|---|
| Nominal input voltage | 208 V |
|---|---|
| AC input frequency | 50 - 60 Hz |
| Maximum current | 20 A |
| Nominal output voltage | 120-208 V |
| Load capacity | 5760 VA |
| Maximum total current draw per phase | 16 A |
| Compliance certificates | RoHS |
|---|---|
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, UL 60950-1, UL Listed, REACH |
| Operating temperature (T-T) | -5 - 45 °C |
|---|---|
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Width | 55 mm |
|---|---|
| Depth | 44 mm |
| Height | 1829 mm |
| Weight | 6.58 kg |
| Packaging content | Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
|---|
| Package weight | 8.66 kg |
|---|---|
| Package width | 164 mm |
| Package depth | 119 mm |
| Package height | 2014 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
