Overview

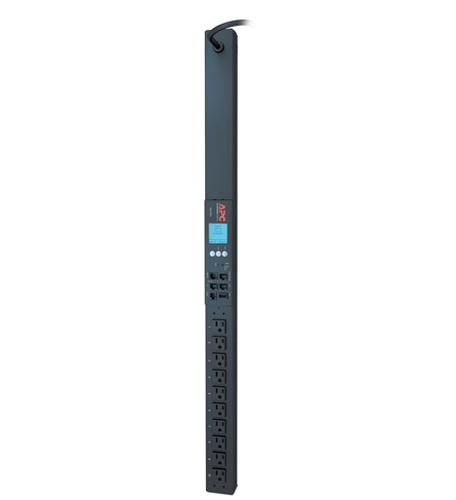

APC Metered Rack Power Distribution Units (PDUs) provide active metering to enable energy optimization and circuit protection. User-defined alarm thresholds mitigate risk with real-time local and remote alerts to warn of potential circuit overloads. Metered Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership. Metered Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers. Users can access and configure Metered Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
Design
| PDU types | Metered |
|---|
| Mounting | Horizontal/Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 10 AC outlet(s) |
|---|
| Power plug | NEMA 5–15P |
|---|
| AC outlet types | NEMA 5–15R |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 3 m |
|---|
Power
| Nominal input voltage | 100 - 120 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 100-120 V |
|---|
| Load capacity | 1440 VA |
|---|
| Maximum input current per phase | 15 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | cUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 55 mm |
|---|
| Depth | 44 mm |
|---|
| Height | 902 mm |
|---|
| Weight | 4.08 kg |
|---|
Packaging data
| Package weight | 4.94 kg |
|---|
| Package width | 160 mm |
|---|
| Package depth | 108 mm |
|---|
| Package height | 1131 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
