Overview

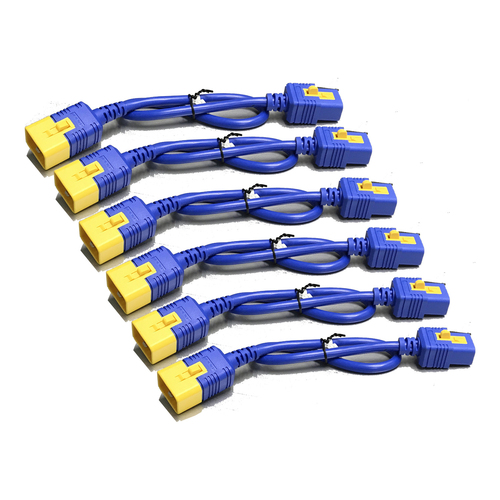

Wide selection of Rack PDU power cords for a variety of IT equipment.
Specifications
Features
| Product colour | Blue |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Female |
|---|
| Cable length | 0.6 m |
|---|
| Connector 1 | IEC C20 |
|---|
| Connector 2 | C20 coupler |
|---|
| Connector 1 form factor | Straight |
|---|
| Connector 2 form factor | Straight |
|---|
| Connector 1 lockable | Yes |
|---|
| Connector 2 lockable | Yes |
|---|
Power
| Input current | 16 A |
|---|
| Maximum current | 16 A |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 70 °C |
|---|
| Storage temperature (T-T) | -25 - 75 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 20 - 80% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | CCC; CSA; PSE; UL listed; VDE |
|---|
Weight & dimensions
| Width | 60 mm |
|---|
| Depth | 65 mm |
|---|
| Height | 300 mm |
|---|
| Weight | 1.12 kg |
|---|
Packaging data
| Quantity per pack | 6 pc(s) |
|---|
| Package width | 60 mm |
|---|
| Package depth | 65 mm |
|---|
| Package height | 300 mm |
|---|
| Package weight | 1.12 kg |
|---|
Technical details
| Sustainable packaging | No |
|---|
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 8544429090 |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Total carbon footprint (kg of CO2e) | 73.69581385156451 |
|---|
Other features
| Input connection type | IEC 60320 C20 |
|---|
| Country of origin | China |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
