Overview

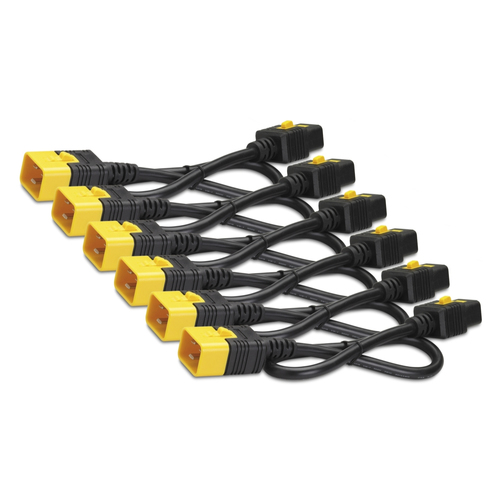

AP8712R is NetShelter range of Power Cord ensuring reliable power delivery and secure connections for your Rack PDUs and servers. This locking IEC power cord comes in cable length 2ft (0.6m), IEC 60320 C20 as input and IEC 60320 C19 as output receptacle. Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Specifications
Features
| Product colour | Black |
|---|
| Connector 1 gender | Male |
|---|
| Connector 2 gender | Female |
|---|
| Cable length | 0.6 m |
|---|
| Connector 1 | IEC C20 |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 75 °C |
|---|
| Storage temperature (T-T) | -25 - 75 °C |
|---|
| Operating relative humidity (H-H) | 20 - 80% |
|---|
| Storage relative humidity (H-H) | 20 - 80% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | CCC; CSA; PSE; UL listed; VDE |
|---|
Weight & dimensions
| Width | 60 mm |
|---|
| Depth | 65 mm |
|---|
| Height | 300 mm |
|---|
| Weight | 1.12 kg |
|---|
Packaging data
| Package width | 60 mm |
|---|
| Package height | 300 mm |
|---|
| Package weight | 1.12 kg |
|---|
Technical details
| Sustainable packaging | No |
|---|
| SCIP number | 1cdb2fed-a06f-4574-913d-8df8e70936b2 |
|---|
| Proposition 65 | Yes |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Customs product code (TARIC) | 8544429090 |
|---|
| Harmonized System (HS) code | 84733080 |
|---|
| Total carbon footprint (kg of CO2e) | 73.69581385156451 |
|---|
Other features
| Input connection type | IEC 60320 C20 |
|---|
| Dimensions (WxDxH) | 60 x 65 x 300 mm |
|---|
| Country of origin | China |
|---|
