APC BY SCHNEIDER ELECTRIC

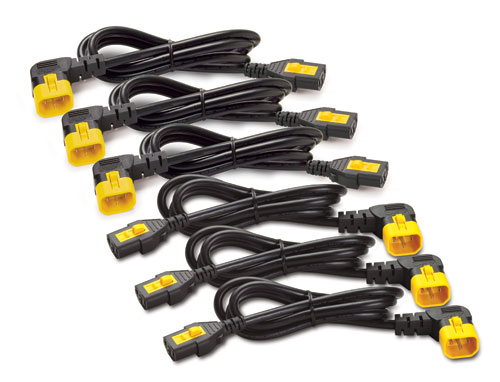

APC Power Cord Kit (6 ea), Locking, C13 to C14 (90 Degree), 1.2m, North America
Part number AP8704R-NA
1.2M POWER CORD KIT 6EA LOCKING C13 TO C14 90DEG NORTH AMERICA
- 1.22 m
- C13 coupler Female
- C14 coupler Male
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- AP8704R-NA
- Condition
- New
- Category
- Cables › Power Cables
- 1GPA category
- Hardware
Overview
This product AP8704R-NA can free up space and secure power cords between rack-mount PDUs and attached IT equipment with the exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the "locking" feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Specifications
| Product colour | Black |
|---|---|
| Connector 1 gender | Female |
| Connector 2 gender | Male |
| Cable length | 1.22 m |
| Connector 1 | C13 coupler |
| Connector 2 | C14 coupler |
| Input current | 10 A |
|---|
| Operating temperature (T-T) | 0 - 105 °C |
|---|---|
| Storage temperature (T-T) | -25 - 105 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|
| Width | 70 mm |
|---|---|
| Depth | 45 mm |
| Height | 240 mm |
| Weight | 1.01 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
