Overview

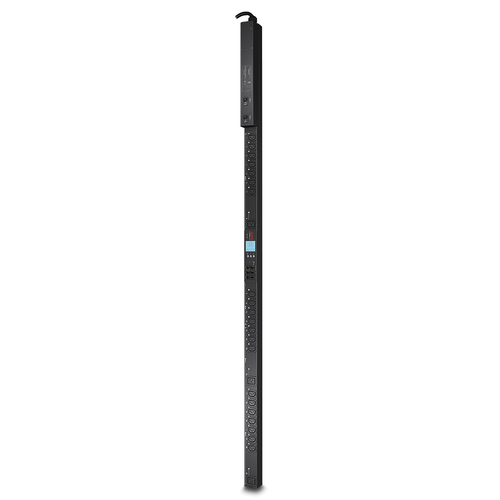

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets Power sequencing delays allow users to define the order in which to power up or down attached equipment Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding Current metering provides real-time remote monitoring of connected loads Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles User-defined alarms warn of potential circuit overloads before critical IT failures occur Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by APC Centralized Management platforms using InfraStruxure Central, Capacity Manager and Change Manager
Specifications
Design
| PDU types | Switched |
|---|
| Rack capacity | 0U |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|

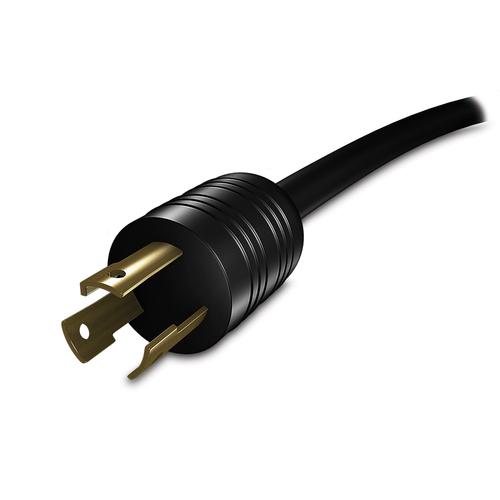

| Power plug | NEMA L6-30P |
|---|
| Input connection type | NEMA L6-30P |
|---|
Features
| Cable length | 2.9 m |
|---|
Power
| Nominal input voltage | 200; 208; 230 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 30 A |
|---|
| Nominal output voltage | 208 V |
|---|
| Output voltage | 200 V; 208 V |
|---|
| Maximum total current draw per phase | 30 A |
|---|
| Power protection features | Overload |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | cUL listed; PSE; UL listed; VCCI class A |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 51 mm |
|---|
| Height | 1829 mm |
|---|
| Weight | 8.23 kg |
|---|
Packaging data
| Package weight | 10.5 kg |
|---|
| Package width | 162 mm |
|---|
| Package depth | 118 mm |
|---|
| Package height | 2038 mm |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| Removable battery | Yes |
|---|
| Halogen free | No |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Logistics data
| Country of origin | India |
|---|
| Customs product code (TARIC) | 8537109899 |
|---|
| Total carbon footprint (kg of CO2e) | 3177.7753173235 |
|---|
