Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

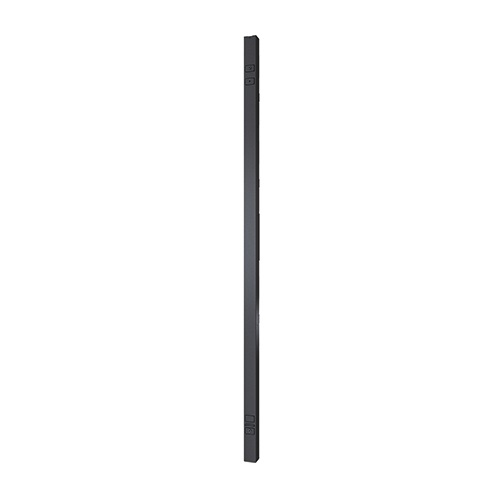

APC AP8632 power distribution unit (PDU) 24 AC outlet(s) 0U Black

Part number AP8632

RACK PDU 100-120V 30A 0U 24X5-20R 2G METERED-BY-OUTLET

  • Switched 0U Black
  • 24 AC outlet(s) NEMA L5-20R
  • 2900 W
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
AP8632
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

APC Metered by Outlet with Switching Rack Power Distribution Units (PDUs) enable advanced, user-customizable power control and individual outlet power metering. Remote outlet level controls allow power on/off functionality for power recycling to reboot locked-up equipment and to avoid unauthorized use of individual outlets. Power sequencing delays allow users to define the order in which to power up or down attached equipment. Avoid circuit overload during power recovery and extend uptime of critical equipment by prioritizing the load shedding. Current metering provides real-time remote monitoring of connected loads. Switched Rack PDUs include real power monitoring, a temperature/humidity sensor port, and locking IEC receptacles. User-defined alarms warn of potential circuit overloads before critical IT failures occur. Users can access, configure, and control Switched rack PDUs through secure Web, SNMP, or Telnet Interfaces and is complimented by Struxureware for Data Centers using Data Center Expert and Data Center Operations with Capacity and Change modules.

Includes : Installation guide , Rack Mounting brackets , Safety guide , Serial configuration cable

Specifications

Design
PDU typesSwitched
Rack capacity0U
MountingVertical
Product colourBlack
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugNEMA L5-30P
AC outlet typesNEMA L5-20R
Features
Cable length3 m
Power
Nominal input voltage100 - 120 V
AC input frequency50 - 60 Hz
Maximum current30 A
Nominal output voltage100-120 V
Maximum input current per phase30 A
Power protection featuresOverload
Maximum power2900 W
Certificates
Compliance certificatesRoHS
CertificationcUL Listed, FCC Part 15 Class A, ICES-003, PSE, UL 60950-1, UL Listed
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Weight & dimensions
Width55 mm
Depth51 mm
Height1829 mm
Weight8.05 kg
Packaging data
Package weight10.1 kg
Package width164 mm
Package depth119 mm
Package height2041 mm
Package typeBox

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
