Overview

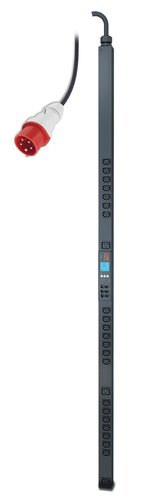

APC Metered by Outlet Rack Power Distribution Units (PDUs) provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency
Specifications
Design
| PDU types | Metered, Metered-by-outlet |
|---|
| Rack capacity | 0U |
|---|
| Mounting | Vertical |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|
| Power plug | IEC309 |
|---|
| AC outlet types | C13 coupler, C19 coupler |
|---|
| Input connection type | IEC 309 16A 3P+N+PE, IEC 309 20A 3P+N+E |
|---|
| Output connections | 21 x C13 & 3 x C19 |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 1.83 m |
|---|
Management features
| Monitoring | Current, Power, Voltage |
|---|
| Management platform | Web, SNMP, Telnet |
|---|
Power
| Nominal input voltage | 400 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Nominal output voltage | 230 V |
|---|
| Load capacity | 11040 VA |
|---|
| Maximum input current per phase | 16 A |
|---|
| Maximum total current draw per phase | 16 A |
|---|
| Maximum power | 11040 W |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC Part 15 Class A, ICES-003, UL, VDE,
REACH |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 15000 m |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 51 mm |
|---|
| Height | 1829 mm |
|---|
| Weight | 8.21 kg |
|---|
Packaging data
| Package weight | 10.5 kg |
|---|
| Package width | 163 mm |
|---|
| Package depth | 117 mm |
|---|
| Package height | 2037 mm |
|---|
Logistics data
| Total carbon footprint (kg of CO2e) | 7251.82 |
|---|
