Overview

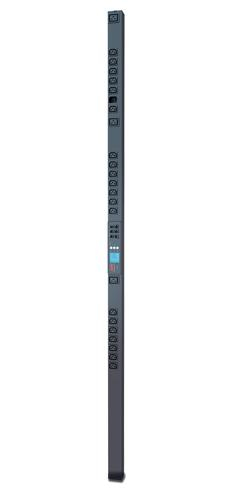

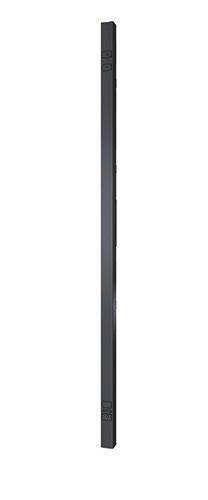

This APC Metered by Outlet Rack Power Distribution Units (PDUs) AP8461 provide individual outlet power metering to enable energy optimization and circuit protection Current metering provides real-time remote monitoring of connected loads Metered by Outlet Rack PDUs provide power utilization data to allow Data Center Managers to make informed decisions on load balancing and right sizing IT environments to lower total cost of ownership Metered by Outlet Rack PDUs include real power monitoring, a temperature/humidity sensor port, locking IEC receptacles, and ultra low profile circuit breakers Users can access and configure Metered by Outlet Rack PDUs through secure Web, SNMP, or Telnet Interfaces which are complimented by APC Centralized Management platforms using InfraStruxure Central, Operations, Capacity, and Energy Efficiency.
Specifications
Design
| PDU types | Metered |
|---|
| Product colour | Black |
|---|
| Display | LCD |
|---|
Ports & interfaces
| AC outlets quantity | 24 AC outlet(s) |
|---|
| AC outlet types | C13 coupler, C19 coupler |
|---|
| Input connection type | NEMA L21-20P |
|---|
Features
| LED indicators | Yes |
|---|
| Cable length | 1.83 m |
|---|
Management features
| Monitoring | Current |
|---|
Power
| Nominal input voltage | 208 V |
|---|
| AC input frequency | 50 - 60 Hz |
|---|
| Maximum current | 20 A |
|---|
| Output voltage | 208 V |
|---|
| Maximum total current draw per phase | 20 A |
|---|
Certificates
| Compliance certificates | RoHS |
|---|
| Certification | cUL, FCC, ICES-003, UL, VCCI, REACH |
|---|
Operational conditions
| Operating temperature (T-T) | -5 - 45 °C |
|---|
| Storage temperature (T-T) | -25 - 65 °C |
|---|
| Operating relative humidity (H-H) | 5 - 95% |
|---|
| Storage relative humidity (H-H) | 5 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Weight & dimensions
| Width | 56 mm |
|---|
| Depth | 51 mm |
|---|
| Height | 1778 mm |
|---|
| Weight | 8.21 kg |
|---|
Packaging content
| Packaging content | CAN Port Terminator, Installation guide, Rack Mounting brackets, Safety guide, Serial configuration cable |
|---|
Packaging data
| Package weight | 10.5 kg |
|---|
| Package width | 163 mm |
|---|
| Package depth | 117 mm |
|---|
| Package height | 2037 mm |
|---|
Logistics data
| Total carbon footprint (kg of CO2e) | 6810.75 |
|---|
